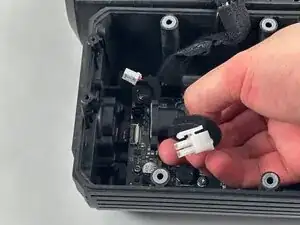

Power Socket
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background
The Sonos Era 100 is a smart speaker that offers stereo sound, Bluetooth connectivity, and is part of Sonos's broader multi-room audio ecosystem. The Era 100 was released on March 28, 2023 alongside the Sonos Era 300, Sonos' first Dolby Atmos-enabled smart speaker. It builds upon the features of the Sonos One, with improvements in sound quality with the inclusion of an extra angled tweeter, a 25% larger woofer, immersive audio, stereo support, Trueplay for Android, and deeper bass over Sonos One.
Identification
The Sonos Era 100 comes in both Black and White. It's a simple cylinder with that says "Sonos" vertically on the speaker grill. It can also be identified by the volume slider on the top of the speaker.
Technical Specifications
Dimensions
Height: 7.19 in (182.5 mm)
Width: 4.72 in (120 mm)
Depth: 5.14 in (130.5 mm)
Weight
4.45 lbs (2.02 kg)
Colors
Black, White
Finish
Matte
Controls
Use the capacitive touch controls to play, pause, skip, replay, adjust the volume, mute your voice assistant, and group or ungroup Sonos products.
Bluetooth Button
Press to pair with a Bluetooth device.
Mic Switch
Toggle off this switch on the back of the product to disconnect all power to the microphone hardware.
LEDs
Lights on the product indicate connection, microphone activity, and mute status.
