Is your Sonos Era 100 not producing sound or have a distorted bass sound? This guide will walk you through the process of replacing the woofer. You will start with successfully dissembling the speaker to reach the inside components. After, you will use tools such as, tweezers, a metal spudger, and a screwdriver to replace the woofer.
-
-
Gently pull off the rubber foot on the the bottom of the speaker.
-
Remove the five 11 mm Torx T20 screws that secure the bottom plate.
-
Carefully lift off the bottom plate.
-
-
-
Carefully disconnect the ribbon cable connected underneath the bottom panel.
-
To detach the back panel, gently push it in a downward motion.
-
Use tweezers to disconnect the USB-C PCB from the back panel.
-
-
-
Using a halberd spudger, carefully remove the foam tape. Do this by keeping tension on the foam shown in the images and slicing underneath the tape.
-
Pull the speaker grille off.
-
-
-
Remove all four T10 Torx screws securing the touch bar assembly.
-
Use an opening tool to release all four white retaining clips.
-
Lift the touch bar assembly perpendicular to the unit, with care not to strain the connected ribbon cable.
-
Lift the black ZIF locking flap that secures the touch bar assembly ribbon cable.
-
Disconnect the ribbon cable.
-
Remove the touch bar assembly.
-
-
-
Remove the four T10 Torx screws on the back of the device.
-
Pry open the speaker body to access the internals.
-
-
-

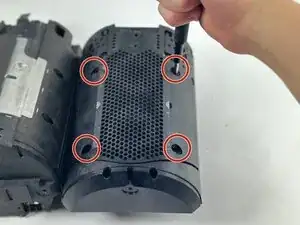

Remove all four T20 Torx screws from the woofer cover.
-

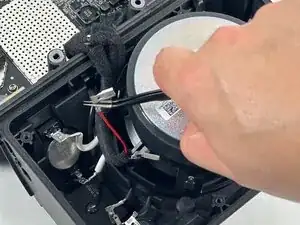

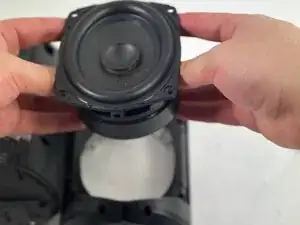

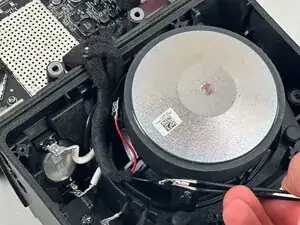

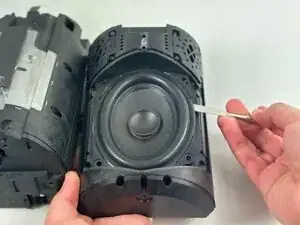

Use a spudger to lift the woofer out of its housing.
-
To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
