Sonos Era 100 Power Supply Board Replacement

Written By: Alex
  • Comments: 0
Sonos Era 100 Power Supply Board Replacement

Difficulty

Moderate

Steps

11

Time Required

30 minutes

Introduction

Is your Sonos Era 100 refusing to power on, exhibiting power issues, or showing signs of electrical trouble? This guide will walk you through the process of replacing the power supply. We will carefully guide you through dissembling your speaker to safely access the internal components. Clear step-by-step instructions on how to remove the old power supply and install a new one will be included. Follow along this guide to find out more!

  1. NAC3UXpiPpLHut1V
    NAC3UXpiPpLHut1V
    AyFLAqL5BKxp4lCo
    MSO1MUkMRxkqIKS4

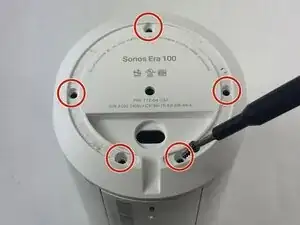

    • Gently pull off the rubber foot on the the bottom of the speaker.

    • Take care not to stretch or damage the rubber foot if you intend to reuse it. Use a hairdryer or iOpener to lightly heat the foot adhesive to aid in removal.

    • Remove the five 11 mm Torx T20 screws that secure the bottom plate.

    • Carefully lift off the bottom plate.

  2. FcP4ayLFttCyCQMs
    FcP4ayLFttCyCQMs
    SE5HIKoGM5dZPvJd
    63ooECQAXeYZNRSg

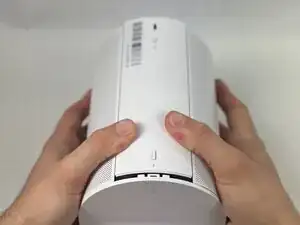

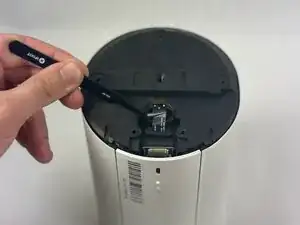

    • Carefully disconnect the ribbon cable connected underneath the bottom panel.

    • To detach the back panel, gently push it in a downward motion.

    • Be especially mindful of the delicate ribbon cable attached to the top edge.

    • Use tweezers to disconnect the USB-C PCB from the back panel.

  3. r2JWheDqrUfiNTIs
    r2JWheDqrUfiNTIs
    ueCRlmB3XFEnTOBh
    nYupYHMGFA2pEIqK

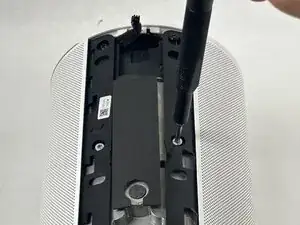

    • Remove the 8 mm and 11 mm T10 Torx screws securing the speaker grille.

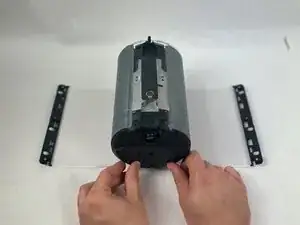

    • Once removed, the speaker grill should fall to both sides of the speaker.

  4. tj6bj2AGGLoeZpHY
    tj6bj2AGGLoeZpHY
    n216lHdS36wu5AbR

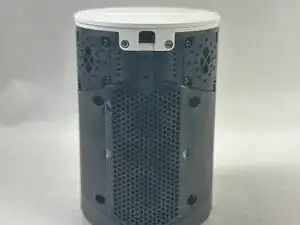

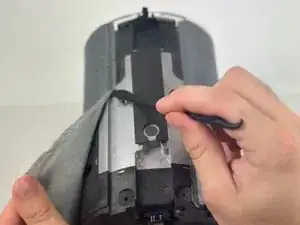

    • Using a halberd spudger, carefully remove the foam tape. Do this by keeping tension on the foam shown in the images and slicing underneath the tape.

    • Pull the speaker grille off.

  5. MQgRAuNOHFyEbgSL
    MQgRAuNOHFyEbgSL
    ATQOuV6HTBH5XUus
    E6SvNPyNi3CZp43s

    • Remove all four T10 Torx screws securing the touch bar assembly.

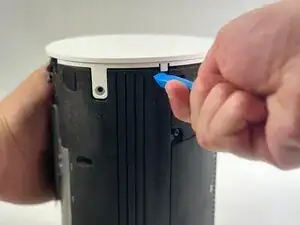

    • Use an opening tool to release all four white retaining clips.

    • Lift the touch bar assembly perpendicular to the unit, with care not to strain the connected ribbon cable.

    • Lift the black ZIF locking flap that secures the touch bar assembly ribbon cable.

    • Disconnect the ribbon cable.

    • Remove the touch bar assembly.

  6. DYIsZXwxXe6XJ5ND

    • Remover rubber plugs with a metal spudger

  7. NWBWGmwh5RTtPgQY
    NWBWGmwh5RTtPgQY
    HsYM5ERQLybXN6Xw

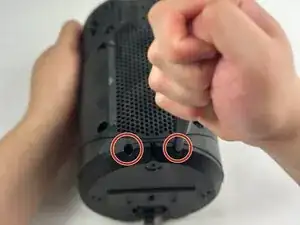

    • Remove front-bottom two T10 Torx 11 mm screws.

    • Remove the six front T10 Torx screws.

  8. YWAjKMBYqxqu6blp
    YWAjKMBYqxqu6blp
    VhVlDkRAIRrXWOUK

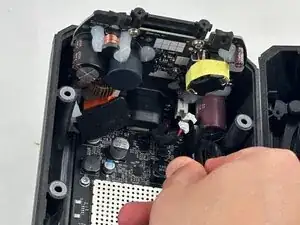

    • Remove the four T10 Torx screws on the back of the device.

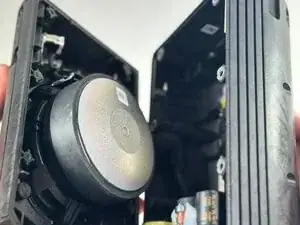

    • Pry open the speaker body to access the internals.

  9. SIBQXaEEoZIKyFqE
    SIBQXaEEoZIKyFqE
    CrFMiFCkKKTRkJUV

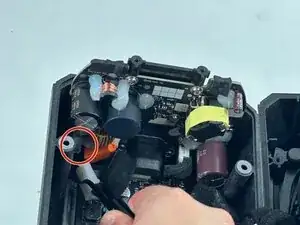

    • Disconnect both of the power supply board connectors from the motherboard.

  10. Nc1ZCPIJGpFIe3EG
    Nc1ZCPIJGpFIe3EG
    22RfuQXTII5D1KiC
    DuC65BSM35pCYKE4

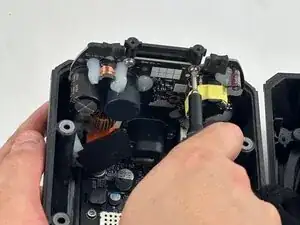

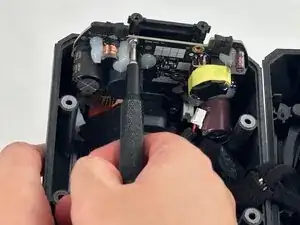

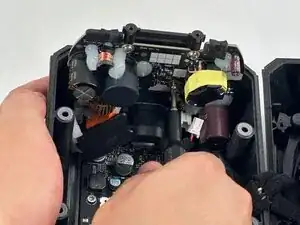

    • Use a T10 Trox screwdriver to remove the three 8 mm screws securing the power supply board.

  11. MoR2iEwjRSrbJ5t3

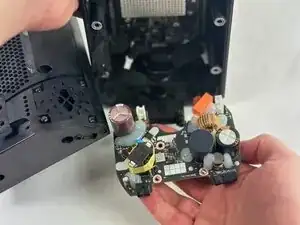

    • Carefully remove the board.

Conclusion

To reassemble your device, follow the above steps in reverse order.
