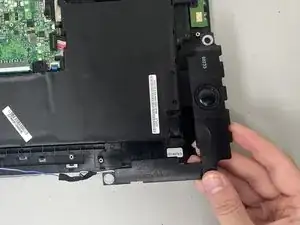

Speakers

Speakers
Wi-Fi Card

Wi-Fi Card

Background

The Asus Q525U is a multi-function laptop with a 360 degree rotatable display released in July of 2019. The sleek design is convenient for a variety of applications, including gaming, web browsing, and multimedia functions. The 15.6” touch-capacitive display provides a crisp picture and is thin and light. This laptop also includes 3 USB ports, a HDMI port, and has fingerprint and facial recognition capabilities.

Identification

This laptop is best identified by the model number on the back of device, ABI7T9.

Specifications

Display/Weight:

  • Screen size
    • 15.6”
  • Resolution
    • 1920 x 1080 pixels
  • Touchscreen
    • Yes
  • HD type
    • Full HD
  • Weight
    • 4.2 lbs

Processor:

  • Processor type
    • 8th Gen Intel Core i7
  • Processor frequency
    • 1, 8 GHz
  • Processor cores
    • 4
  • Processor boost frequency
    • 4 GHz

Software:

  • Operating system installed
    • Windows 10 Home
  • Operating system architecture
    • 64-bit

Memory:

  • Max internal memory
    • 16 GB
  • Internal memory type
    • DDR4-SDRAM
  • Memory clock speed
    • 2400 MHz

Storage:

  • Total storage capacity
    • 2000 GB
  • Storage media
    • HDD
  • Card reader integrated
    • Yes

Graphics:

  • On-board graphics card model
    • Intel UHD Graphics 620
  • On-board graphics base frequency
    • 300 MHz
  • Max on-board graphics card memory
    • 32 GB

Audio:

  • Number of built in speakers
    • 2
  • Built in microphone
    • Yes

Camera:

  • Front camera
    • Yes

Network:

  • Bluetooth
    • Yes
  • Bluetooth version
    • 4.1
  • Wi-Fi
    • Yes
  • Top Wi-Fi standard
    • Wi-Fi 5 (802.11ac)

Ports:

  • USB ports
    • 2 USB type A, 1 USB type C
  • HDMI port
    • 1
  • Headphone/mic port
    • Yes

Battery:

  • Number of battery cells
    • 3

Power:

  • AC adapter power
    • 45 W
  • AC adapter frequency
    • 50 - 60 Hz
  • AC adapter input voltage
    • 100 - 240 V
  • AC adapter output voltage
    • 19 V

For more specifics and to access the websites referenced, please utilize the following sources:

https://kelaptop.com/en/asus-q525ua-bi7t...

https://www.asus.com/us/SupportOnly/Q525...
