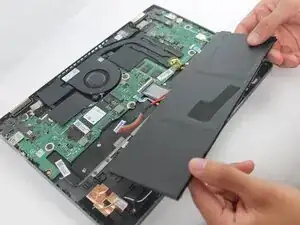

Battery
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background
The Acer Chromebook Spin 714 is a 2-in-1 convertible laptop designed for both personal and professional use, featuring Chrome OS and high-performance hardware. The Spin 714C is produced by Acer, a Taiwanese multinational hardware and electronics company. Our model, the CP714-2W-56B2, was released in May 2023 as an upgrade to the previous Spin 713.
As the successor to the Spin 713, the Spin 714C brings notable improvements by including a higher-quality webcam, a longer-lasting battery life extending from 10 to 14 hours, and faster performance with the Intel Core i5-1235U processor. Upon release, the 2023 Spin 714 had a retail price of $699, which is $30 less than its 2022 predecessor.
A review of the 2023 Spin 714 by PC MAG acknowledged these changes. The durable build, powerful performance, and remarkable display helps the 2023 Acer Chromebook stand out among other competitors. Its durability and long-lasting battery life make it a top choice in its category.
Identification
The Acer Chromebook Spin 714C is a durable and performance-minded laptop. The model CP714-2W-56B2 can be identified by its sleek, metal-gray exterior. You will also find two subtle logos, Chromebook and Acer, on the upper left of the top shell. This model can be told apart from previous iterations by its lighter gray coloring, smoother bevels, darker port labels, and lighter weight.
Technical Specifications
Brand: Acer
Model: Chromebook Spin 714 CP714-2W-56B2
Release date: May 2023
Operating system: Chrome OS
Processor
Processor Manufacturer: Intel®
Processor Model: i5-1335U
Processor Type: Core™ i5
Processor Speed: 1.30 GHz
Processor Core: Deca-core (10 Core™)
Processor Generation: 13th Gen
Display
Size: 14”
Resolution: 1920x1200 pixels
Touch Screen: Yes
Refresh Rate: 60 Hz
Display Screen Type: LCD
Display Screen Technology: In-plane Switching (IPS) Technology CineCrystal
Memory
RAM: 8 GB
System Memory Technology: LPDDR4X
Memory Card Reader: No
Storage
Total Solid State Drive Capacity: 256GB
Solid State Drive Interface: PCIe NVMe
Connectivity
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Wireless LAN Model: Wireless Wi-Fi 6E AX211
Bluetooth version: 5.2
Inputs
Webcam Video Resolution: 2560 x 1440ppx
Microphone: Yes
Touchpad: Yes
Fingerprint Reader: No
Number of Speakers: 2
Ports and Slots
USB Ports: 3
USB Type-C: 2
USB 3.2 Type-A Ports: 1
HDMI Outputs: 1
Battery Information
Battery Life: 10 Hours
Maximum Power Supply Wattage: 65W
Physical Characteristics
Height: 0.71"
Width: 12.3"
Depth: 8.8"
Weight (Approximate): 3.02 lbs
Product Color: Steel Gray
Material: Aluminum
Additional Information
Acer Chromebook Spin 714 User Manual
