Lenovo ThinkPad T16 Gen 3 WWAN Card Replacement

Written By: Nick Schultz
  • Comments: 0
Lenovo ThinkPad T16 Gen 3 WWAN Card Replacement

Difficulty

Moderate

Steps

11

Time Required

20 - 30 minutes

Introduction

Follow this guide to replace the WWAN card in your Lenovo ThinkPad T16 Gen 3 laptop.

The WWAN (Wireless Wide Area Network) card allows you to connect to the internet using a cellular connection. If your computer has a WWAN card installed and you're having trouble using cellular, you may have a faulty WWAN card.

If you are having trouble accessing a local Wi-Fi connection, you may have an issue with your WLAN card, which cannot be replaced independently of the motherboard on this laptop.

The Lenovo part number for the WWAN card is 5W11H85459 for the 5G model and 5W11H85427 for the LTE model. This guide works for both, with the exception of antenna count (two for LTE and four for 5G as shown in this guide).

  1. xxNOPMoGoWYkTGQE
    xxNOPMoGoWYkTGQE
    GUnBXysNB2NxAUKS
    YNC2EdVroQAhUjPC

    • For your safety, discharge your battery below 25% before disassembling your laptop. A charged battery may catch fire if damaged. If your battery is swollen, take appropriate precautions.

    • Completely shut down your laptop (don't just put it in sleep mode) and disconnect all cables.

    • Flip the laptop upside-down, and rotate it so the screen hinge faces towards you.

  2. RbWgoD2uaUqYYHy2
    RbWgoD2uaUqYYHy2
    3yXt1uueHCgFQBV2

    • Use a Phillips screwdriver to fully loosen the seven captive screws securing the base cover.

  3. xyP2CA2xDRghTaRR
    xyP2CA2xDRghTaRR
    BIgZKvTMkNb2MBQK
    ahNyGAEmIWqnirIT

    • Insert your fingernail or an opening pick into the gap between the base cover and keyboard deck, next to one of the screen hinges.

    • Pry up the base cover until the clips unfasten.

  4. rQiUEKGPLWPWJRrm
    rQiUEKGPLWPWJRrm
    cb5tJFXBhvJPoSPQ

    • Grasp the base cover along the screen hinge edge and lift slowly to unfasten the remaining clips.

    • Lift and remove the base cover.

    • During reassembly, lay the base cover into the frame, inserting it into the tabs along the battery edge. Press down firmly around the perimeter to reengage all the clips.

  5. tkYPg2EhajlcGZG6
    tkYPg2EhajlcGZG6
    kewyINYhKrkeCqNM

    • Because of the battery connector's design, the only way to disconnect the battery is by physically removing it.

    • Use a Phillips screwdriver to fully loosen the two captive screws securing the battery connector.

  6. VbFsBodaaINR1abt
    VbFsBodaaINR1abt
    OBXrUehAO2CM5QdQ
    YXbYLqdNKDUOLNDm

    • Lift the edge of the battery with the connector to disconnect it.

    • You may feel a little resistance from the battery connector as it disconnects—that's normal.

    • Remove the battery

    • During reassembly:

    • Slide the plastic tabs on the long edge of the battery into their recesses in the frame.

    • Lower the battery into place so the connector goes over its socket.

  7. HSeWZOIIGCNLXub5
    HSeWZOIIGCNLXub5
    TUFLwiWX6UioRL1p
    nHQGdjhK4EN4aELy

    • Insert one arm of your angled tweezers under the metal neck of one of the antenna coaxial connectors on the WWAN card and lift straight up to disconnect it.

  8. JqBSPUQRKwNrTZtd
    JqBSPUQRKwNrTZtd
    obKK2xR6iQBkLmjf
    aBCdK3X2xmBn1Jbt

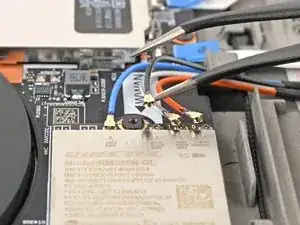

    • Repeat the process to disconnect the remaining antenna cables from the WWAN card.

    • During reassembly, use tweezers to hold each connector in place over its socket and gently press down with your finger or a spudger—the connector should "snap" into place. If you're having trouble, reposition the head instead of using more force.

  9. ShRYnLITCesGyYLU

    • Use a Phillips screwdriver to remove the 4 mm‑long screw securing the WWAN card to the motherboard.

  10. SQLEAXeSf5mqMOOT
    SQLEAXeSf5mqMOOT
    wCASYZpQKeiMOXiK
    qMkOYUYPBYa2hap1

    • Use your fingernail to lift up the WWAN card enough to grasp it with your fingers.

    • Pull the WWAN card away from its socket.

  11. kY2R2FaPjtAVeSkE

    • Remove the WWAN card from your laptop.

    • Check the condition of the thermal pad under the SSD and replace it if damaged. It is 20 x 30 mm and 0.5 mm thick. The Lenovo part number is 5M20Z56333. If the pad remained intact but is stuck to the bottom of the old WWAN card, carefully transfer it to its spot on the board in between the WWAN card connector and its nearest screw hole.

Conclusion

Compare your new replacement part to the original part—you may need to transfer remaining components or remove thermal pad backings from the new part before you install it.

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
