Introduction

If your Xbox Duke Controller isn't registering input of any kind or the console doesn't recognize that the controller is plugged in, use this guide to replace the 6-pin cable connected to the controller.

Before using this guide, check to see if the port on the Xbox console is damaged or needs to be cleaned. Then, check the end of the 6-pin cable to see if the connector itself is damaged or dirty. A small amount of contact cleaner will remove any dirt or debris within the port. If the cable or port show no visible signs of damage, then the Duke will need to be taken apart to disconnect the cable from the motherboard.

Follow the potentiometer replacement guide up to Step 9 to access the motherboard.

  1. VUs2UqhpvvWbThHa
    VUs2UqhpvvWbThHa
    qtBA24BENacNiigS
    pLZVB5AgNLnfDwUU

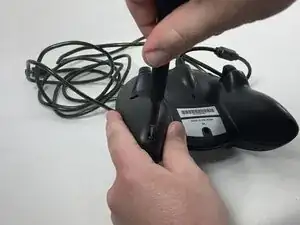

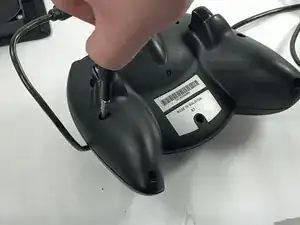

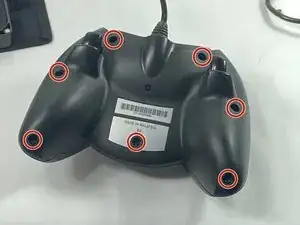

    • Remove the seven black 8 mm screws holding the two halves of the Duke together using a Phillips #1 screwdriver.

    • To reach the deeply set screws, use a longer screw driver or a 4.0 socket bit in addition to the PH1 bit.

  2. o1KhageeqJyUKTRp
    o1KhageeqJyUKTRp
    VqtjVJoqNU2oynDS
    BIPWE1KHsBnP1kWK

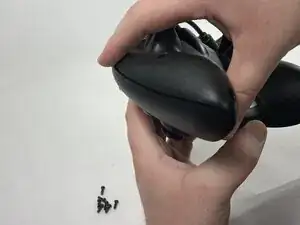

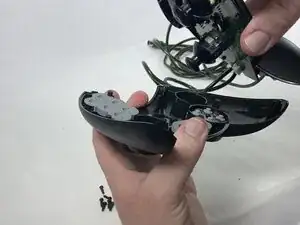

    • Remove the two halves of the Duke, placing the top plate face-down so the buttons don't fall out.

  3. xjtKyVfkucxTKZZi
    xjtKyVfkucxTKZZi
    H4MHUfUZTVPpcRHJ

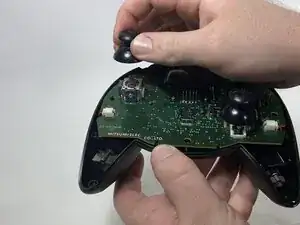

    • Remove the stick caps from the potentiometers.

  4. goiMJXbIovgiPgCZ
    goiMJXbIovgiPgCZ
    AE43pLlFPQRq6Bdd

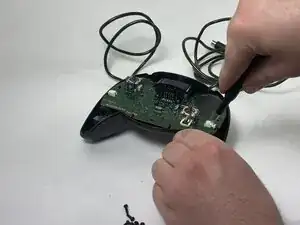

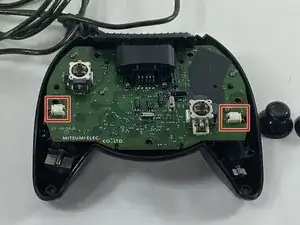

    • Disconnect the connectors attaching the rumble motors to the motherboard using a pair of tweezers.

    • Be gentle when slipping the tweezers underneath the flaps of the connectors; they are fragile and can snap.

  5. SUm3D1wVBQ6rB3Ey
    SUm3D1wVBQ6rB3Ey
    ArLphBhagaQwXYvd
    • Using a Phillips #1 screwdriver, remove the four yellow 8 mm screws holding the motherboard to the bottom half of the controller.

  6. HKA4ybtMJZosVXsW
    HKA4ybtMJZosVXsW
    phANQAOetYjc33HY

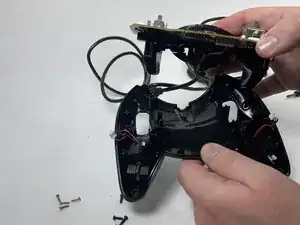

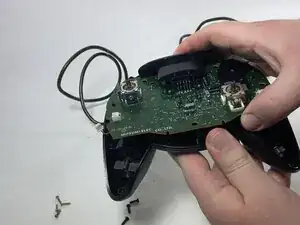

    • Remove the motherboard from the bottom half of the controller.

  7. noZFFPmDSmEEE1tQ
    noZFFPmDSmEEE1tQ
    T2aPvYhdpmjkd4eG
    ahhuVdLeeGK3UxEO

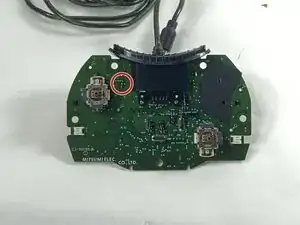

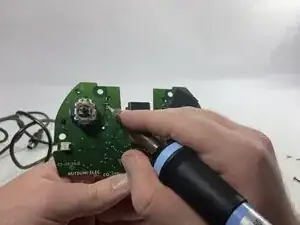

    • Desolder the connector pins holding the left trigger assembly in place.

    • Remove the trigger assembly by pushing on the black connectors that hold them to the motherboard.

  8. kuKPUNZGfkJ5KjdZ

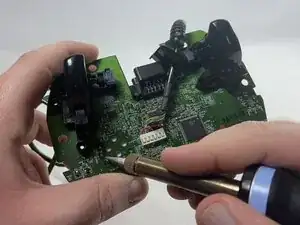

    • Desolder all of the connector pins holding the potentiometer in place.

    • Pull out the potentiometers and solder the new ones into place.

  9. jObqLOfVtMX1Pfar
    jObqLOfVtMX1Pfar
    YU1WQutUnnwgKP62
    njZaupXBaOEjfvhB

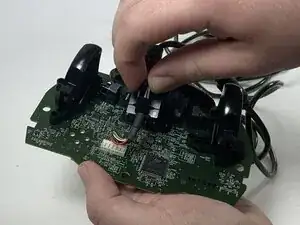

    • Disconnect the cable from the memory card slot, sliding the black plastic holder out of the slot.

    • Remove the plastic piece from the cable.

  10. uVJQglGUyIeARRY4
    uVJQglGUyIeARRY4
    GtGOx2ONAu3q6dTp

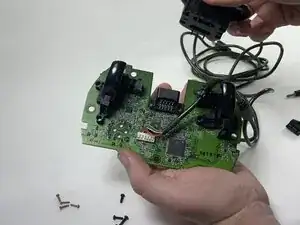

    • Remove the memory card slot by sliding it away from the motherboard.

  11. ndbcqGhheMAC4frK
    ndbcqGhheMAC4frK
    qSxrwvwFYU4oEllk
    • Desolder the pins holding the cable in place, then pull the cable away from the motherboard.

    • Solder the new cable into the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
