Polaroid Flip Battery Replacement

Written By: Spencer Day

Comments: 0

Difficulty

Moderate

Steps

Time Required

30 - 45 minutes

Introduction

Use this guide to replace a worn‑out or dead battery in your Polaroid Flip instant camera.

The lithium‑ion battery in your Polaroid Flip camera has a limited lifespan. If your camera dies quickly and doesn't hold a charge, it may be time to replace the battery.

Tools

Parts

Step 1

If you have any film left, take some photos! Then remove the cartridge. Disassembly will expose any leftover film.
Before you begin:
Unplug all cables from your camera.
Fully close the flash unit at the front of the camera to turn it off.

Step 2

Throughout this guide, directional words (front, back, left, right) are from the perspective of using the camera—or when the lens faces away from you.

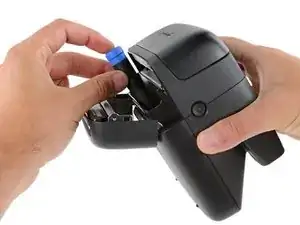

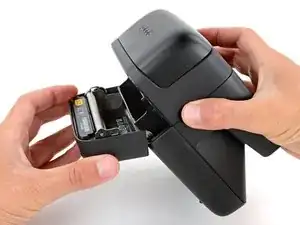

Hold down the latch on the left side of the camera and open the film door.

Step 3

Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from.

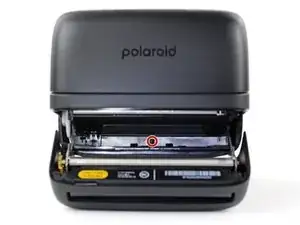

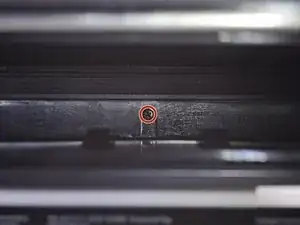

Use a Phillips screwdriver to remove the 5.9 mm‑long screw securing the rear shell.
The screw is hidden inside the camera on the back edge—you may need to use a flashlight to see it, as well as a skinny, long‑shank screwdriver to reach it.
Be careful when removing your screwdriver, as the screw can easily fall inside the camera. If it does, hold the camera above your work surface and gently shake it so the screw falls out.

Step 4

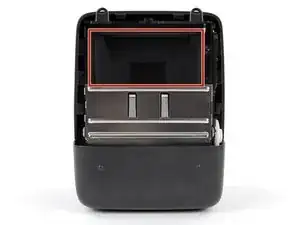

Removing the bottom shell in the next step exposes the camera mirror. Be careful not to smudge it or get any debris on it. If you accidentally do, use a lint‑free cloth to gently wipe the mirror clean.

Step 5

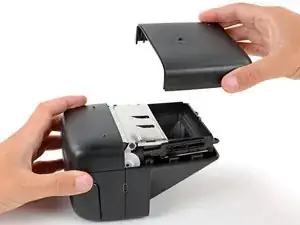

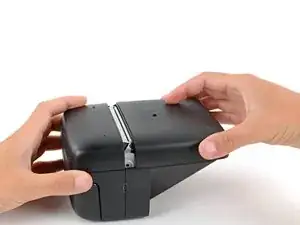

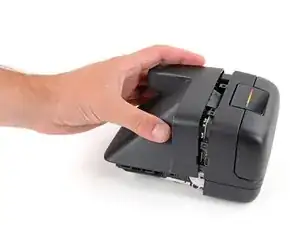

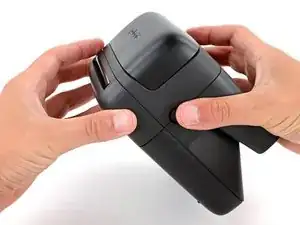

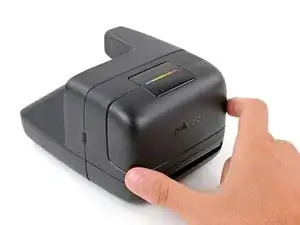

Slide the bottom shell towards the back of the camera to release the clips securing it.
Lift and remove the shell.
During reassembly:
Place the shell onto the frame so it hangs over the back about about half an inch (~13 mm), creating a gap near the center of the camera. This allows room for the clips to slide into place.
Push down on the shell and slide it towards the front of the camera to engage the clips—you should feel them slide into place.

Step 6

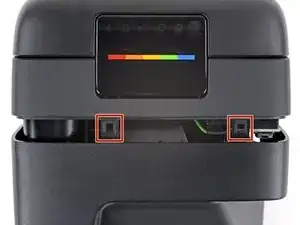

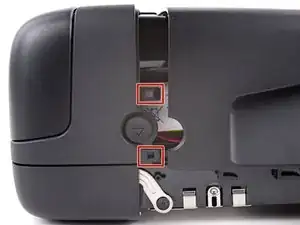

Tight plastic clips secure the top shell to the camera. Releasing them can be very tricky and will most likely take a few attempts. Be patient and use these photos as reference for the location of the clips.

Step 7

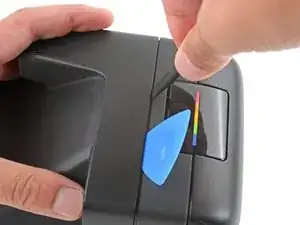

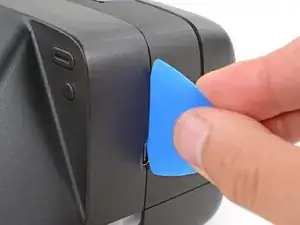

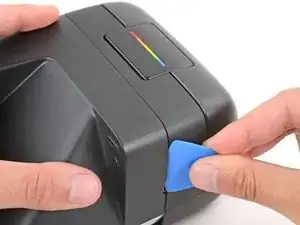

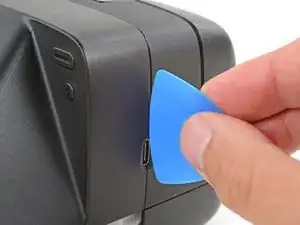

Insert the flat edge of an opening pick in the seam between the front and top shells, just above the USB‑C port on the right edge.
Use your pick to pry the top shell away from the front shell.
Keep the inserted edge of the pick pointed toward the top shell when separating it. This helps release the tight plastic clips holding them together.

Step 8

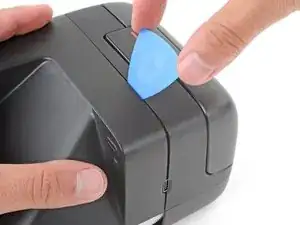

Slide your pick around the top right corner to release the clip.
You should feel and hear a distinct "click" as the clip releases. If you don't, go back to the previous step and try again—it may take multiple attempts.
Rotate your opening pick so the tip is under the top shell (between the two top clips) and leave it inserted to prevent the clip from re‑engaging.

Step 9

Releasing the clip in this step is difficult and will probably take a few tries. Be patient and don't try to force the clip free, or you may damage your camera.
If the opening pick falls out, repeat the previous step to re‑insert it. Having it inserted under the shell is necessary to ensure the right‑side clip doesn't re‑engage.

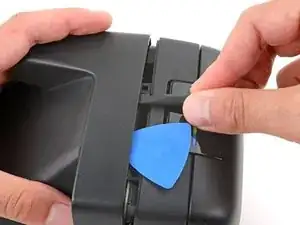

Insert the flat end of a spudger into the seam near the center of the camera, just to the left of the opening pick.
Slide the spudger along the seam towards the viewfinder until it stops—this means the spudger is in the correct spot against the clip.
Push the spudger under the top shell and pry up to release the clip and separate the shells.
It shouldn't take much force to release the clip. If the clip isn't releasing, remove the spudger and try again from the beginning of this step.

Step 10

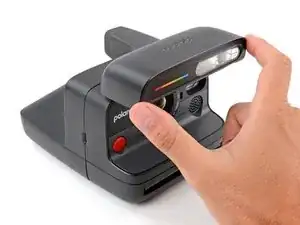

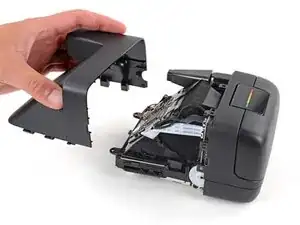

Remove the top shell.
During reassembly:

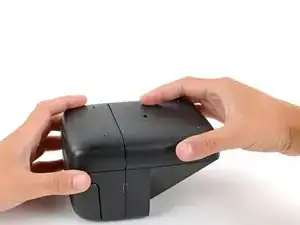

Press the shell firmly onto the main body so all the clips engage.
You should feel and hear distinct "clicks" as the clips engage.
Check around the perimeter of the shell seam and make sure there are no gaps. If there are, firmly press the shells together to engage the clip near the gap.

Step 11

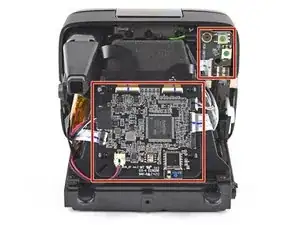

The capacitor in your camera holds an electrical charge and can deliver a potentially dangerous electric shock if you touch the boards incorrectly.
To minimize risk, avoid touching the boards, wires, and other exposed components with your fingers or metal tools. Consider wearing rubber gloves if working near the board.

Step 12

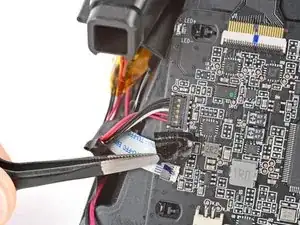

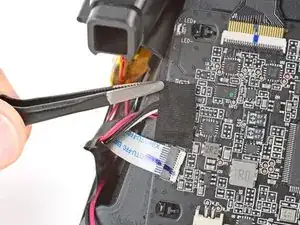

Use tweezers or your fingers to remove the piece of tape covering the battery connector.

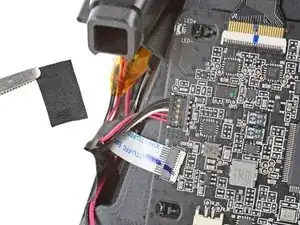

Set the tape aside—you'll need it for reassembly.

Step 13

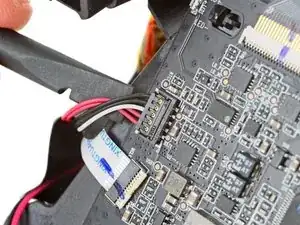

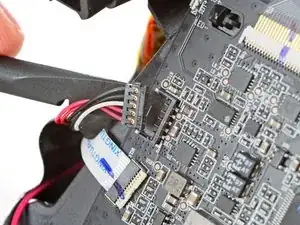

Gently slide the flat end of a spudger under the battery connector and lift it out of the socket.
Don't lift on the cables themselves, only on the connector. Otherwise, you may damage the wires.

Step 14

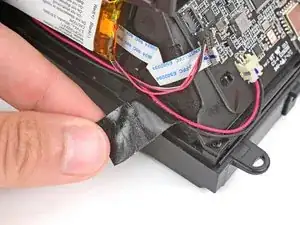

Peel back (or remove) the piece of tape securing the battery cables to the camera.

Step 15

A piece of foam tape secures the battery to the camera.

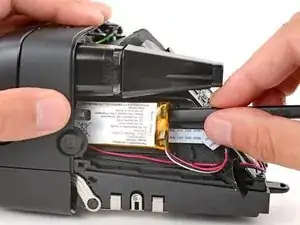

Slide the flat end of a spudger completely under the battery and lift to separate the tape, making sure not to push on the white cable under the battery.
Be very careful not to puncture or deform the battery.

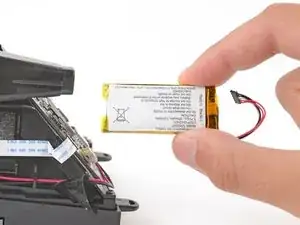

Remove the battery.

Step 16

If the battery tape stayed intact, you can reuse it and skip this step. Otherwise, follow this step to remove and replace the tape.
Use a spudger and tweezers to peel up and remove the old piece of foam tape.

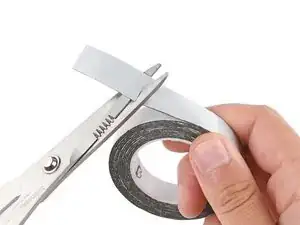

Cut a new piece of foam tape approximately 0.5 x 1.5 inches (1.5 x 4 cm).
Apply the new piece of tape above (not on) the white ribbon cable, where the old tape was.
Reconnect the battery by aligning the connector head over its socket and pressing it into place with your finger—you should feel the connector slide into the socket. Don't try to force the connector into place. If it doesn't connect easily, reposition the connector and try again.
Reconnecting the battery ensures it's properly oriented when securing it with the tape.
Press the battery into place on the tape to secure it.
