Lenovo ThinkPad P50 Display Replacement

Written By: Sara Richardson
  • Comments: 0
Lenovo ThinkPad P50 Display Replacement

Difficulty

Easy

Steps

6

Time Required

10 minutes

Introduction

A cracked, flickering, or completely unresponsive laptop screen can make even basic tasks impossible. Fortunately, replacing a damaged display is often more straightforward than it seems. This guide will walk you through the essential steps to safely remove and replace your laptop screen using simple and straightforward steps.

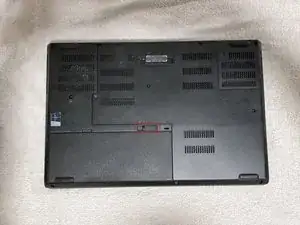

  1. Lb4naAfR6FGneW4M
    Lb4naAfR6FGneW4M
    KhJSo3JKpGVfGdm1

    • Slide the battery latch to the left to unlock it and remove the battery.

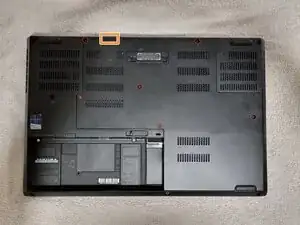

  2. KjrXjvJJJ2NAqiDo

    • Loosen the six 12.6 mm captive screws that secure the lower case with the Phillips #00 screwdriver.

    • The screws will not come all the way out; do not attempt to remove them from the case.

    • Pull up the notch with your fingernail or a spudger.

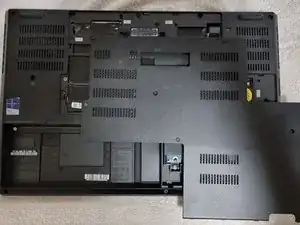

  3. PZZRX2aaBCOPyWXm
    PZZRX2aaBCOPyWXm
    N6NNemRax3aYYKdQ

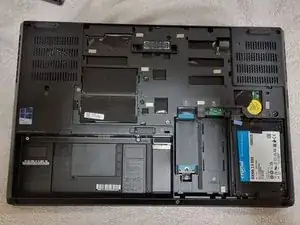

    • Lift the lower case up and off of the chassis.

  4. HDJoAfwPvkKb2kwU
    HDJoAfwPvkKb2kwU
    sqEquAI2bNYwhTVE

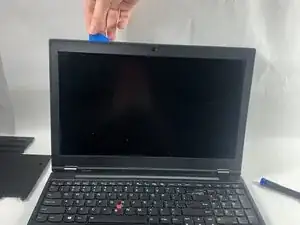

    • Use an iFixit opening pick to carefully remove the plastic bezel from the front of the display.

    • There are clips beneath the trim that need to be carefully detached.

    • Avoid using metal tools, as they can damage the plastic components.

  5. cFRlSjsO4sZoTRKP

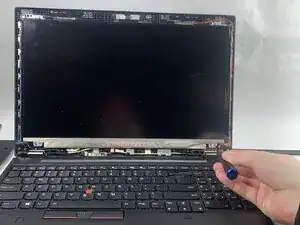

    • Remove the four 2.5 mm screws located along the corners with a Phillips #00 screwdriver.

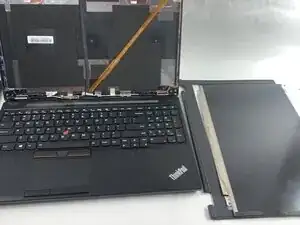

  6. ZQosGbxECGijYhmP
    ZQosGbxECGijYhmP
    5RSFiPSVQjoJmnYT
    gnlagxSOUO3pDvfu

    • Carefully tilt the screen forward and lay it face down on the keyboard, making sure not to strain or damage the cable still attached to it.

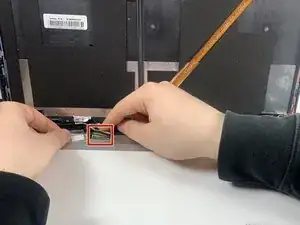

    • Display (sometimes called eDP cables in laptops) and camera cable connectors often have a small metal buckle running around the socket, locking them in place. The connectors are typically wide and may have tape attached to the buckle.

    • Gently push the tip of a spudger under the metal buckle to unclip it, then swing it over the socket.

    • Hold the buckle and cable together and gently pull the connector straight out of its socket.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
