Acer Predator Helios 300 PH315-53 SATA Hard Disk Drive (HDD) / Solid State Drive (SDD) Replacement

Written By: Christopher Leon Farmer
  • Comments: 0
Acer Predator Helios 300 PH315-53 SATA Hard Disk Drive (HDD) / Solid State Drive (SDD) Replacement

Difficulty

Moderate

Steps

12

Time Required

5 - 10 minutes

Introduction

Use this guide to repair or replace the SATA HDD (hard disk drive) or SATA SSD (solid state drive) for your Predator Helios 300 PH315-53.

The Acer Predator Helios 300 PH315-53 contains a slot for an optional 2.5 inch SATA III HDD (5400 or 7200 RPM). The same slot can also hold a 2.5 inch SATA SSD.

Before using this guide, ensure that you understand electrostatic discharge (ESD), and how it can damage your laptop. ESD refers to discharges of static electricity that can occur between objects that are not properly grounded, and these discharges can damage sensitive electronic components. Dell Technologies offers a short video explaining How To Avoid ESD Damage.

  1. cbRmH1D11v3aZm3a
    cbRmH1D11v3aZm3a
    FbQkgtX5theYNGp3
    ysVNwWqwWtSuh1YU

    • Turn off the laptop by holding down the power button for 7 seconds.

    • Verify that the blue power indicator light is turned off.

  2. MkKvksRNAcCeuhUX
    MkKvksRNAcCeuhUX
    W6PFSnQCUX5ane6L

    • Remove the plug from the back of your laptop.

    • Verify that the charging light is off after you remove the plug.

    • The battery’s charging light turns “amber” when plugged into the power cord and charging. The indicator light switches to blue once the battery is fully charged.

  3. LpW4CdCmnF13huyJ
    LpW4CdCmnF13huyJ
    6CU6NQjnUPdvFKuE
    DIU3URhoNTGyn4VR

    • Remove the eleven screws from the bottom case with a Phillips #1 Screwdriver.

  4. tl4jSFgmupPRiEg5
    tl4jSFgmupPRiEg5
    TXklQoRYgeLdiqrq
    tgkJlqqSpdVLAb2Y

    • A spudger is a tool that can help separate electronic panels without scratching or damaging your device.

    • Use your thumb to apply gentle upward pressure on the laptop vent while using a spudger to separate the bottom case from the top case.

    • Work the spudger along the seam where the bottom case meets the top case.

    • Apply gentle upward pressure on the opposite laptop vent as you work the spudger across the back of the laptop.

  5. cYKOjrx4XZBG2hYF
    cYKOjrx4XZBG2hYF
    rmoLvyEnKGDRlFFP
    XrpOBUiHxKZLPh6q

    • Turn the laptop so the laptop vents are facing away from you and the bottom case remains face up.

    • Use your fingertips to pull gently upward on the vents while using your palms to apply gentle downward pressure on the bottom case.

    • Move your hands outward from the center of the laptop to each side, continuing to pull the bottom case gently upward with your fingertips.

    • Lift the bottom case away from the laptop.

  6. KUpZetxWLPoCFFIe
    KUpZetxWLPoCFFIe
    PfQBrHZqKEauukAS
    X4jFucxhnDYbsHGF

    • Always consider protecting against electrostatic discharge (ESD) when working on the components inside your laptop.

    • A properly grounded ESD mat and wristband can protect your laptop from ESD damage.

    • Remove the two screws securing the battery to the top case with a Phillips #0 Screwdriver.

  7. vTFDXVxPQeAsq2iQ

    • Lift the battery up and away from the motherboard to expose its connection wire.

  8. TuCB3FQOOvBmlDv3
    TuCB3FQOOvBmlDv3
    A2SSKTVp6FwOOsAM
    kps3gJC2NxR1LCZZ

    • Gently remove the connection wire from the motherboard using a spudger.

    • Remove the cable only a little at a time from each side, as shown in the photos. This avoids damaging the connections.

    • Lift the disconnected battery out of the laptop.

  9. NbI32AKF6fuXDPAO
    NbI32AKF6fuXDPAO
    tTTQaZfuNWaLEBAL

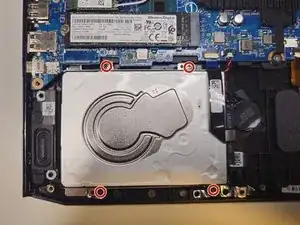

    • Remove the four screws that secure the SATA drive to the top case.

  10. MZWIZUhYliXGh1JJ
    MZWIZUhYliXGh1JJ
    1GBOCjHM3TUuRYy1
    PtesMeODibhUSAmA

    • Using a spudger, gently lift the white retaining-bracket that secures the SATA III cable to the motherboard.

    • With the retaining-bracket lifted, remove the SATA III cable from the motherboard.

  11. WnddFYooSATwIQFP
    WnddFYooSATwIQFP
    WITlYRfRPdjRP4jT
    HEDVHsWsGImYRun2

    • Remove the SATA III drive from the laptop.

    • Grip the cable connection at the back of the SATA III drive with two fingers, and pull it away from the drive.

  12. AFeWWBnVeEuXkP3n
    AFeWWBnVeEuXkP3n
    A4Jo1qKJYBC3SYqF
    BlF3VawDkhma3oWp

    • The SATA III drive sits inside a mount designed to secure it to the top case of your laptop.

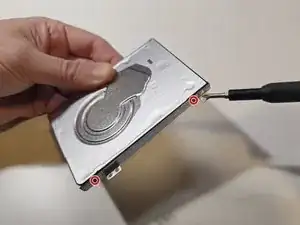

    • Remove the four screws securing the SATA III drive to its mount with a Phillips #0 screwdriver.

    • Your replacement SATA III drive may not have a mount that can secure it to the top case of your laptop. Use the original mount if your new drive does not have one.

Conclusion

To reassemble your device, follow these instructions in reverse order.
