Acer Predator Helios 300 PH315-53 PCIe Solid State Drive (SSD) Replacement

Written By: Christopher Leon Farmer
  • Comments: 0
Acer Predator Helios 300 PH315-53 PCIe Solid State Drive (SSD) Replacement

Difficulty

Moderate

Steps

10

Time Required

4 - 7 minutes

Introduction

Use this guide to repair or replace the PCIe (peripheral component interconnect express) SSD (solid state drive) for your Predator Helios 300 PH315-53.

The Acer Predator Helios 300 PH315-53 ships with a single SSD that is 512GB or 1TB in size. The SSD is a M.2 SSD 2280 PCIe SSD. The laptop's motherboard has an additional PCIe SSD slot for users to add an additional M.2 SSD 2280 PCIe SSD.

Before using this guide, ensure that you understand electrostatic discharge (ESD), and how it can damage your laptop. ESD refers to discharges of static electricity that can occur between objects that are not properly grounded, and these discharges can damage sensitive electronic components. Dell Technologies offers a short video explaining How To Avoid ESD Damage.

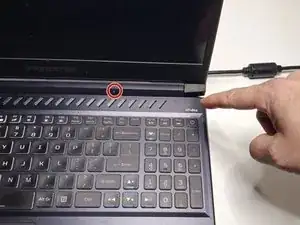

  1. cbRmH1D11v3aZm3a
    cbRmH1D11v3aZm3a
    FbQkgtX5theYNGp3
    ysVNwWqwWtSuh1YU

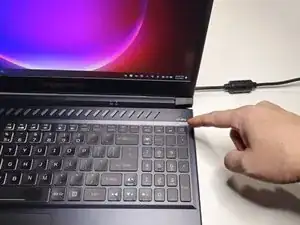

    • Turn off the laptop by holding down the power button for 7 seconds.

    • Verify that the blue power indicator light is turned off.

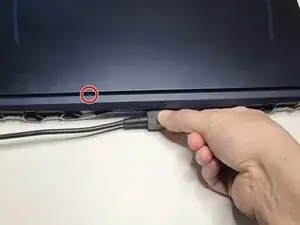

  2. MkKvksRNAcCeuhUX
    MkKvksRNAcCeuhUX
    W6PFSnQCUX5ane6L

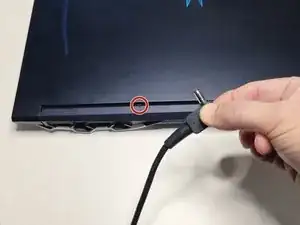

    • Remove the plug from the back of your laptop.

    • Verify that the charging light is off after you remove the plug.

    • The battery’s charging light turns “amber” when plugged into the power cord and charging. The indicator light switches to blue once the battery is fully charged.

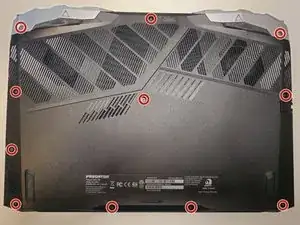

  3. LpW4CdCmnF13huyJ
    LpW4CdCmnF13huyJ
    6CU6NQjnUPdvFKuE
    DIU3URhoNTGyn4VR

    • Remove the eleven screws from the bottom case with a Phillips #1 Screwdriver.

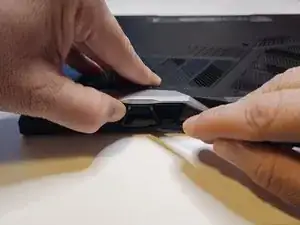

  4. tl4jSFgmupPRiEg5
    tl4jSFgmupPRiEg5
    TXklQoRYgeLdiqrq
    tgkJlqqSpdVLAb2Y

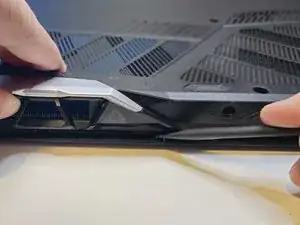

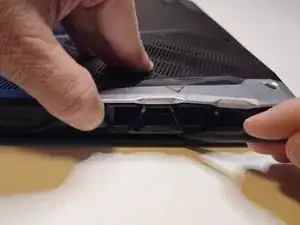

    • A spudger is a tool that can help separate electronic panels without scratching or damaging your device.

    • Use your thumb to apply gentle upward pressure on the laptop vent while using a spudger to separate the bottom case from the top case.

    • Work the spudger along the seam where the bottom case meets the top case.

    • Apply gentle upward pressure on the opposite laptop vent as you work the spudger across the back of the laptop.

  5. cYKOjrx4XZBG2hYF
    cYKOjrx4XZBG2hYF
    rmoLvyEnKGDRlFFP
    XrpOBUiHxKZLPh6q

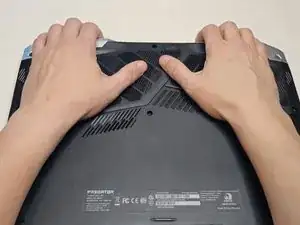

    • Turn the laptop so the laptop vents are facing away from you and the bottom case remains face up.

    • Use your fingertips to pull gently upward on the vents while using your palms to apply gentle downward pressure on the bottom case.

    • Move your hands outward from the center of the laptop to each side, continuing to pull the bottom case gently upward with your fingertips.

    • Lift the bottom case away from the laptop.

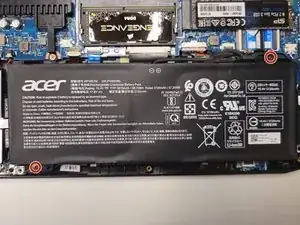

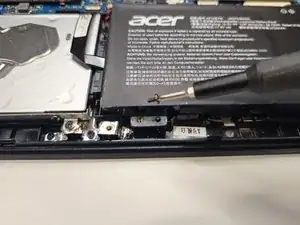

  6. KUpZetxWLPoCFFIe
    KUpZetxWLPoCFFIe
    PfQBrHZqKEauukAS
    X4jFucxhnDYbsHGF

    • Always consider protecting against electrostatic discharge (ESD) when working on the components inside your laptop.

    • A properly grounded ESD mat and wristband can protect your laptop from ESD damage.

    • Remove the two screws securing the battery to the top case with a Phillips #0 Screwdriver.

  7. vTFDXVxPQeAsq2iQ

    • Lift the battery up and away from the motherboard to expose its connection wire.

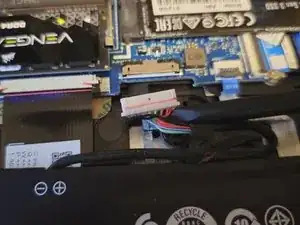

  8. TuCB3FQOOvBmlDv3
    TuCB3FQOOvBmlDv3
    A2SSKTVp6FwOOsAM
    kps3gJC2NxR1LCZZ

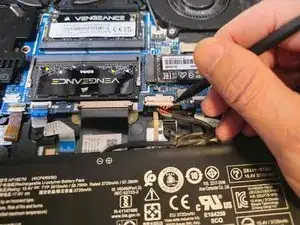

    • Gently remove the connection wire from the motherboard using a spudger.

    • Remove the cable only a little at a time from each side, as shown in the photos. This avoids damaging the connections.

    • Lift the disconnected battery out of the laptop.

  9. ugExFbWcIVLKOqGc
    ugExFbWcIVLKOqGc
    rgRtyPZqLuWO3M2F
    W1agQbaJ6EIx3wAU

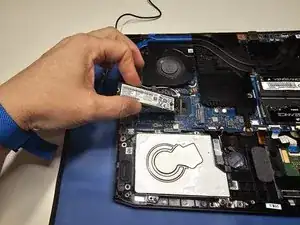

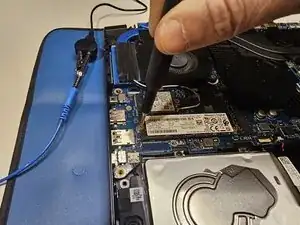

    • Unscrew the retaining screw that secures the SSD to the motherboard with a Phillips #0 screwdriver.

    • Ensure you are wearing a properly grounded ESD wristband before handling your SSD.

    • Gently pull your SSD out of the motherboard's PCIe slot.

    • Store your SSD on your properly grounded ESD mat while it is outside of your laptop.

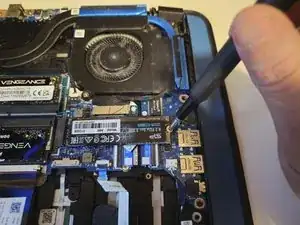

  10. ujffGRDThBkFLrmN
    ujffGRDThBkFLrmN
    oZWnyTxYamOLFLmK
    en3yVC3LbSYdrhHV

    • Repeat the actions you performed in the previous step to remove the SSD that is on the other side of your motherboard.

    • This slot will be empty if you have not previously upgraded your storage with an additional SSD.

Conclusion

To reassemble your device, follow these instructions in reverse order.
