Tools

These are some common tools used to work on this device. You might not need every tool for every procedure.

Background

The Polaroid Now is an instant film camera that offers features like autofocus for sharper photos and a dual-lens system that adjusts based on subject distance. The camera has a built-in rechargeable battery, a flash for low-light environments, and is compatible with i-Type and 600 film.

Identification

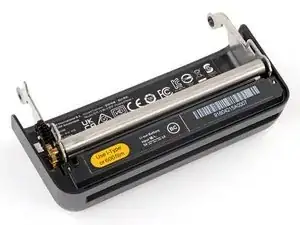

The Polaroid Now can be identified by its model number which is located on a sticker inside the film door, underneath the bar code. Its model numbers are 009154, 009155, 009156, 009157, 009158, and 009159.

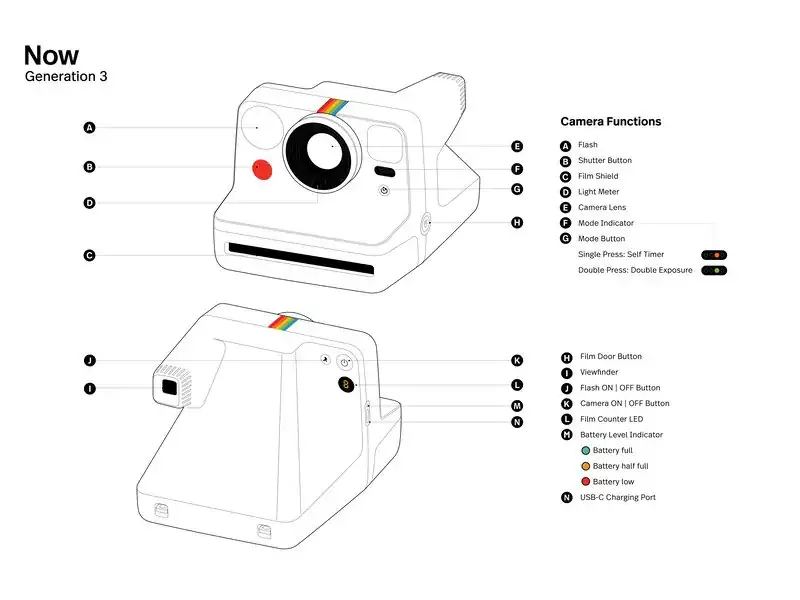

Block Image

Technical Specifications

Available Colors: Black, Pebble White, Arctic Blue, Coral, Yellow, Purple

Compatible with(Films):

  • i-Type Film
  • 600 Film

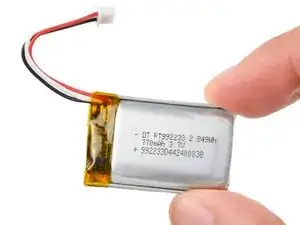

Battery:

  • Rechargeable
  • Lithium-Ion Battery

Shutter System:

  • Uses Precision Step Motor for Shutter

Aperture:

  • Has six useable apertures ranging from ƒ/11 to ƒ/64

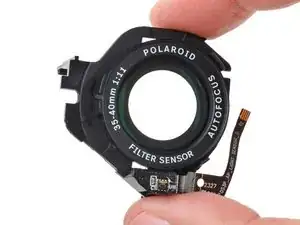

Lens:

  • Optical grade PC and Acrylic lens
  • Coated
  • Capable of ƒ/8 across 0.4m (1.3”) ~ ∞ range controlled via stepping motor
  • Autofocus system via 2 fixed focus zone

Focal Length:

  • Close-up Lens: 94.96 mm
  • Distance Lens: 102.35 mm

Field of View:

  • Horizontal 40°
  • Vertical 41°

Flash System:

  •  Vacuum discharge tube storage

Display:

  •  LED seven-segment display

Device Interface Ports:

  • Type-C Charging Input

Dimensions:

  • 156.5 × 124 × 99 mm (6.16” × 4.88” × 3.9”)

Weight: 568 grams (20 ounces)

Materials:

  • Outer Shell: ABS, PC (40% recycled plastics)

Accessories:

  • Wrist strap

Additional Information
