Introduction
If the film door lever or right gear fell out of your Polaroid Now (Gen 3) camera during disassembly, use this guide to install them.
-
-

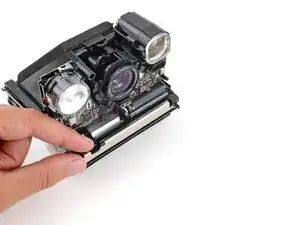

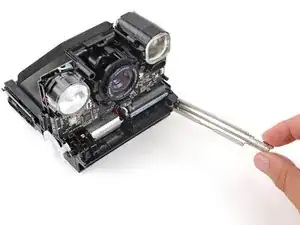

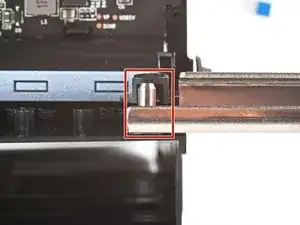

One end of the film door lever has a post that slots into a notch at the front of the camera, near the bottom left corner.
-
Insert the post face‑up into its notch and rotate the lever into place so it's sitting flush with the front of the camera.
-
-
-

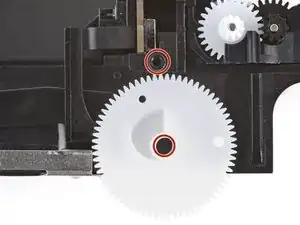

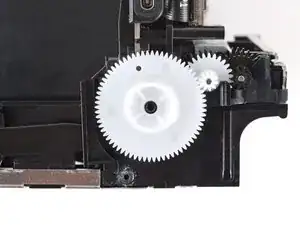

To correctly put the right gear back into place, line up the following:
-
The center hole on the gear goes on the plastic post on the right side of the camera.
-

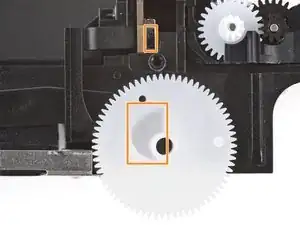

The curved groove slots over the small, plastic peg just above the center post.
-
Conclusion
Return to your original repair guide and continue reassembly.
