iPhone 16 Pro Max Screen Replacement

Written By: Arthur Shi

Comments: 16

Difficulty

Moderate

Steps

Time Required

30 minutes - 2 hours

Introduction

Use this guide to replace a broken, cracked, or non‑responsive screen in your iPhone 16 Pro Max.

You'll need replacement screen adhesive to complete this repair.

Note: Since you can't disconnect the battery during this repair, be especially careful not to use metal prying tools or touch any exposed contacts in your iPhone.

After your repair, calibrate an authentic screen using Apple's Repair Assistant.

Tools

Step 1

Allow your iPhone's battery to drain below 25%, as a charged lithium-ion battery is a potential safety hazard.
Unplug any cables from your iPhone.
Hold the power and either volume buttons, and slide to power off your iPhone.

Step 2

If your screen or back glass is badly cracked, lay overlapping strips of packing tape over the glass to protect yourself and make disassembly easier.
Make sure there's a smooth area near the bottom edge that's big enough for a suction cup to stick to.

Step 3

Use a P2 pentalobe driver to remove the two 7.4 mm-long screws on either side of the charging port.

Step 4

If inserted too far, an opening pick can damage your device. Follow this step to mark your pick and prevent damage.
Measure 3 mm from the tip and mark the opening pick with a permanent marker.
You can also mark the other corners of the pick with different measurements.
Alternatively, tape a coin to a pick 3 mm from the tip.

Got to step 2 and realized the fix kit doesn't include an opening pick! Looks like a guitar pick, and I have those lying around. Is that expected? Looks like the pick is used in many steps below. There's a little blue crowbar that isn't mentioned in the instructions. Perhaps that replaces the opening pick?

Sloan Looney -

Hi! I can't see which guide you were using when writing this comment. Can you reply here with which guide and fix kit you used?

Clay Eickemeyer -

I see you posted this in Meta. I hope it's resolved soon! In the meantime, a guitar pick may work well enough for your repair.

Clay Eickemeyer -

what fix kit?

Meow Purr -

My fix kit didn't include an opening pick either

WILLIAM HARRIS -

Make sure you check inside the black boxes after emptying them. My pick was stuck inside one of the boxes.

AndyF -

My AliExpress refurbished screen came with a pick that has a coin-like circle that pops out, so no modification was necessary

Gijs Leegwater -

the picture shows 3 cm but the description says 3 mm's. Which one is it?

John Pena -

That is a misunderstanding. It is a ruler with a scale for cm, it shows 0.3 cm, i.e. 3 mm.

VauWeh -

Oh, come ON!

Big Ed -

It will ALWAYS be millimeters on a phone, but this step is ridiculous, skip it!

Leif DeWolf -

It's not an Ifixit KIT if it doesn't include everything. You'll need to order the opening pic separately. Or head to Walmart like myself and look for guitar pics. Hopefully, this will work just as well.

Jaleeljb97@icloud.com -

No pick in mine as well. It’s really not clear that you have to order this separately when ordering an IPhone SE 202/2022 screen repair kit. Is this the case?

Jackson Castiglione -

Frustrated, I ordered a compact package where everything was encapsulated. Useless suction tools could not separate the screen. If it is unable to decouple the screen, then why sucking suction tools you have provided.

Shourob Datta -

For my kit the triangle pick was stuck inside the box with the screen not with the other tools maybe it's also there for you

Henry Scheibehenne -

Y’all are getting far, FAR too detailed with some of this stuff…. Measuring and marking the pick that you won’t actually use to open the device?!? lol that’s kinda funny. Just heat it up, grab a spudger, and the back just pops right off! The iFixit tech need to stick to the KISS method more often, you know KEEP IT SIMPLE STUPID!!! Like l, for reals, I’ve been doing this stuff for YEARS and using iFixit guides regularly and this is just ridiculous at this point!

Leif DeWolf -

Step 5

The next four steps demonstrate the Anti-Clamp, a tool we designed to make the opening procedure easier. If you aren't using the Anti-Clamp, skip down four steps for an alternate method.
For complete instructions on how to use the Anti-Clamp, check out this guide.
The Anti-Clamp applies suction to both the screen and the back glass. To open the screen, you need to secure the back glass with tape. You can also check out the full instructions on how to use this tape.
Cut two strips of tape, apply them along the long edges of the phone, and fold them over the back glass to secure it.
Make sure the tape is only securing the back glass and not the screen.

Step 6

Pull the Anti-Clamp's blue handle backward to unlock the arms.
With the screen facing up, slide the arms over the right edge of your phone, with one suction cup on the screen and the other on the back glass. Center the suction cups near the bottom edge.
Support your phone so it rests level while between the Anti-Clamp's arms—a small box works well.
Squeeze the cups together to create suction.
If you find that the surface of your iPhone is too slippery for the Anti-Clamp to hold onto, use tape to create a grippier surface.

Step 7

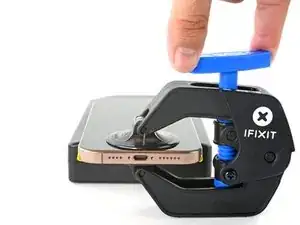

Pull the blue handle forward to lock the arms.
Turn the handle one full turn (360 degrees) or until the cups start to stretch.

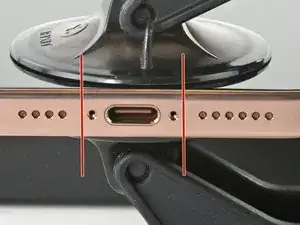

As the cups stretch, make sure they stay vertically aligned with each other. If they keep slipping, remove the Anti-Clamp and apply tape for the cups to stick to.
If you don't have tape, you may use your hands to clean the suction cups and warm them up to help them stick.

Step 8

Use a hair dryer or heat gun to heat the bottom edge of the screen until it's hot to the touch.
Be careful not to heat the phone hotter than this—the battery is susceptible to heat damage.
Wait one minute to give the adhesive a chance to release and present an opening gap.
If a gap doesn't appear after one minute, apply more heat and rotate the handle a quarter turn. Let the Anti-Clamp and time do the work for you.

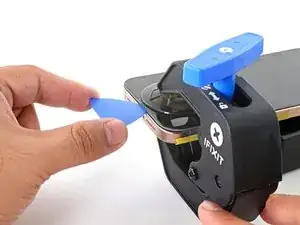

Insert an opening pick into the gap.
Remove the Anti-Clamp using the pull tabs on the suction cups.
Skip the next two steps.

Step 9

The next two steps show how to create an initial gap using a suction handle.
Use a hair dryer or heat gun to heat the bottom edge of the screen until it's hot to the touch.
You can also use an iOpener to heat the screen. Follow these instructions to heat and apply the iOpener properly.

Step 10

Apply a suction handle to the bottom edge of the screen.
While supporting the frame with one hand, pull up on the handle with a strong, steady force to create a gap between the screen and the frame.
If you can't create a gap, apply more heat to the edge and try again.
Insert the tip of an opening pick into the gap.

Step 11

As you slice the adhesive securing the screen in the following steps, don't insert your pick deeper than 3 mm to avoid damaging the following areas:
Two delicate cables connecting the screen to the iPhone—one just above the Action button and the other about halfway along the left edge of the iPhone
Multiple spring contacts around the perimeter of the iPhone

Step 12

Slide the opening pick along the bottom edge to release the adhesive.
Don't insert the pick deeper than 3 mm to avoid damaging the spring contacts.
If the adhesive feels difficult to slice, reheat the edge for a minute.
Leave the opening pick in the bottom-left corner to prevent the adhesive from resealing.

Step 13

Use a hair dryer or heat gun to heat the left edge of the screen until it's hot to the touch.

Step 14

Don't insert your pick deeper than 3 mm to avoid damaging the spring contacts and cables.
Insert a second opening pick in the bottom-left corner, close to the existing pick.
Slide the opening pick along the left edge of the screen to separate the adhesive and release the metal clips.
You'll hear and feel the metal clips release as you pass them.
Leave the opening pick in the top-left corner to prevent the adhesive from resealing.

Step 15

Repeat the heating and slicing procedure along the remaining screen edges.

Step 16

At this point, the screen should be free from the frame. If the screen feels stuck, go back around the perimeter with your pick and carefully check for missed sections of adhesive or stuck clips.
Carefully lift the screen upwards until the clips along the long edges clear the frame.
Swing open the screen over the left edge of the iPhone and lay it flat on your work surface.

Step 17

Use a tri-point Y000 driver to remove the two 1.3 mm‑long screws securing the front sensor and display connector covers.

Step 18

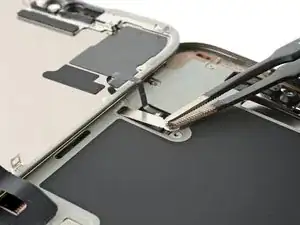

Use tweezers to grasp the front sensor connector cover near the screw hole.
Lift and remove the cover.

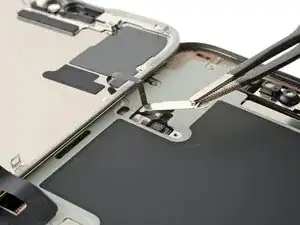

Repeat the procedure to remove the display connector cover.
During reassembly, tuck the cover's tab under its frame cutout, then attach the screw to secure the cover.

Step 19

Use the tip of a spudger to pry up and disconnect the display press connector.
Repeat for the front sensor press connector.
During reassembly, align the connector carefully over its socket and press down with your fingertip—first on one side, then the other—until it clicks into place. Don't try to force the connector into place. If you're having trouble, reposition it and try again.

Step 20

Lift the screen and remove it.
During reassembly, use this guide to reapply adhesive and install your new screen.
Be careful not to damage any of the spring contacts as you clean the frame.

Conclusion

To reassemble your iPhone, follow these instructions in reverse order.

After your repair, calibrate a genuine replacement screen using Apple's Repair Assistant. Navigate to Settings → General → About → Parts & Service History, tap Restart & Finish Repair, and follow the onscreen prompts.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
