iPhone 16 Plus Pentalobe Screws Replacement

Written By: Nick Schultz
  • Comments: 0
iPhone 16 Plus Pentalobe Screws Replacement

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

  1. hbPBaXVZPtwvERPE
    hbPBaXVZPtwvERPE
    Bgrow53isTuoxQB4

    • Allow your phone's battery to drain below 25%, as a charged lithium-ion battery is a potential safety hazard.

    • Unplug any cables from your phone.

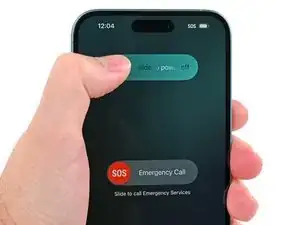

    • Hold the power and either volume buttons and slide to power off your phone.

  2. R2rEXSbbyyNJaQcF
    R2rEXSbbyyNJaQcF
    EtRYJkAafVclWPaG

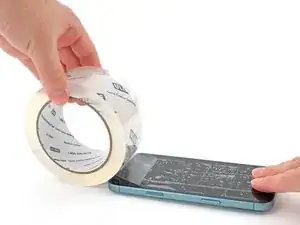

    • If your screen or back glass is badly cracked, lay overlapping strips of packing tape over the glass to protect yourself and make disassembly easier.

    • Make sure there's a smooth area near the bottom edge that's big enough for a suction cup to stick to.

  3. 2L1xyPNHbxcHDGo2
    2L1xyPNHbxcHDGo2
    pHlXkMHcKaCfppXs
    UyUfMfOFG1QtVZl1

    • If inserted too far, an opening pick can damage your device. Follow this step to mark your pick and prevent damage.

    • Measure 3 mm from the tip and mark the opening pick with a permanent marker.

    • You can also mark the other corners of the pick with different measurements.

    • Alternatively, tape a coin to a pick 3 mm from the tip.

  4. aWWeNTKf1NMVXj2C
    aWWeNTKf1NMVXj2C
    NQGCaiKXR42NUZuR

    • Use a P2 pentalobe driver to remove the two 7.7 mm-long screws on either side of the USB-C port.

Conclusion

To reassemble your device, follow these instructions in reverse order.
