iPhone 16 Plus Front Camera Assembly Removal

Written By: Nick Schultz
  • Comments: 0
iPhone 16 Plus Front Camera Assembly Removal

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

  1. saYMf2Vo5JVe4TBJ
    saYMf2Vo5JVe4TBJ
    h2RWhvpbeb6VjVMD

    • Remove the four screws securing the upper connector cover:

    • Two 1.4 mm-long Phillips screws

    • One 3.5 mm-long Phillips screw

    • One 1.0 mm-long tri-point Y000 screw

  2. mXAk1Q6XPoJTdLxG
    mXAk1Q6XPoJTdLxG
    LwLWLHqCTAKXuuZA

    • Use tweezers or your fingers to remove the upper connector cover.

  3. L2lFTOBAjQDkami1
    L2lFTOBAjQDkami1
    nFuBicGLpASIu5Y3
    yd1PGdxSXuHXTZZW

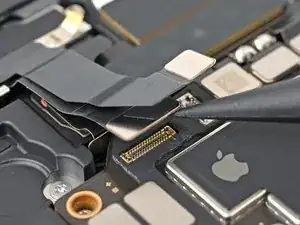

    • Use the point of a spudger to pry up and disconnect the two front camera press connectors, located on the top left corner of the logic board.

    • The second press connector is underneath the first.

  4. KKOIUSL2JVjpKlYJ
    KKOIUSL2JVjpKlYJ
    thqBABZml5XlAqAZ

    • Pick up the front camera assembly and remove it from your phone.

Conclusion

To reassemble your device, follow these instructions in reverse order.
