Pura 70 Pro Chip ID

Written By: Chayton Ritter
Published: 09/05/24
  • Comments: 1

Pura 70 Pro Chip ID

Published: 09/05/24

Teardown

Introduction

Here's out chip ID for the Huawei Pura 70 Pro. Check out our analysis here.

Thanks to our community member Chunglin for the chip ID!

  1. ui6dpdKDIdyMMMUQ
    ui6dpdKDIdyMMMUQ
    qrcywGPcAYMMfTgK

    • HiSilicon Hi6421 GFCV950 power management

    • HiSilicon Hi6423 GFCV250 power management

    • Likely WPInno WP5701GC wireless charging controller

    • Goodix TFA9874C audio amplifier

    • Awinic AW3642 LED flash driver

    • OmniVision WL2868C camera power management

    • SG Micro SGM66055 boost converter

  2. ghBC5TZgVgoBmYgH

    • Likely HiSilicon RTQQ0Q0BB front-end module

  3. teYCDxXMICgwQ5MX

    • Bosch Sensortec BMI270 accelerometer & gyroscope

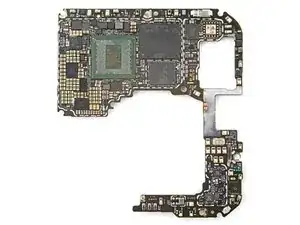

  4. CV136HWnJAmMDeKi
    CV136HWnJAmMDeKi
    NrULgJ2wCDvvYE3h

    • HiSilicon Hi36A0 GFCV121 applications & baseband processor

    • Likely HiSilicon 3GC10D95FV0YG 1 TB NAND flash

    • Richtek RT9471D 3 A single cell switching battery charger

    • Southchip SC8565 likely switched-capacitor power converter

    • Awinic AW86927 haptic driver

    • ETEK Microelectronics ET7303 USB type-C power delivery controller

    • SG Micro SGM6611C 7 A synchronous boost converter

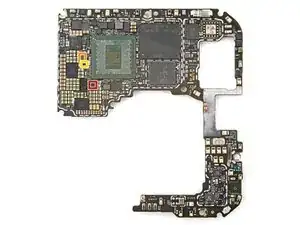

  5. jXdKJuDRgLiFPQUY

    • ETEK Microelectronics ET2095 load switch

    • Awinic AW32905 overvoltage protection load switch

    • SG Micro SGM2578AAD load switch

  6. oDIBlDUDfEHFQedS

    • HiSilicon Hi1105 GFCV120 WiFi 6, Bluetooth, GNSS, FM, & IR controller

  7. hQgaSE4UcLDMSQJL

    • SK hynix H58GG6MK6GX037 12 GB LPDDR5 SDRAM memory

    • This chip was found on top of the applications & baseband processor found on step 4.

  8. ngSdODssQunwWZH1
    ngSdODssQunwWZH1
    OYD1LbAn2pCwRHEr

    • Likely HiSilicon VTQQ7Q0U6 RF transceiver

    • Likely HiSilicon RTQQ0Q0BB front-end module

    • OnMicro OM9902-11 phase 5N multimode multiband power amplifier module
