MacBook Air 13" Early 2020 Antenna Bar Replacement

Written By: Carsten Frauenheim

Comments: 18

MacBook Air 13" Early 2020 Antenna Bar Replacement

Difficulty

Moderate

Steps

Time Required

25 minutes - 1 hour

Introduction

Use this guide to remove or replace the antenna bar in an Early 2020 MacBook Air.

Tools

Parts

MacBook Air 13" (Late 2018-Early 2020) Antenna Bar

Step 1

Before starting this procedure, you should disable your Mac's Auto Boot feature. Auto Boot powers on your Mac when you open the lid, and may be accidentally triggered during disassembly. Use this guide to disable Auto Boot.
If your MacBook is running Big Sur v11.1 or later, disabling Auto Boot may not work. You can proceed normally, but make sure to disconnect the battery as soon as you're inside.
Completely power off and unplug your MacBook Air before you start. Close the display and flip the entire laptop upside-down.
Use a P5 driver to remove the following screws:
Two 7.9 mm screws
Two 7.1 mm screws
Six 2.6 mm screws
Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from to avoid damaging your MacBook.

P5 is also a PL4 (so confusing) - i like the wiha 26764 thanks to @mayer for this post. P5 pentalobe and 1.2 pentalobe screwdriver

greg -

Step 2

Wedge your fingers between the display and the lower case and pull upward to pop the lower case off the Air.
Remove the lower case.
To reinstall the lower case:
Set it in place and press firmly to engage the two hidden clips underneath. You should feel and hear them snap into place.

When reassembling, the “snaps” are in the middle of the laptop (from top to bottom), and just to the left and right of center. I assumed it was near the hinge so it took a bit for me to hear the snaps.

Laurie McCall -

Laurie, the two clips are outlined in the third photo of step two. Hope this helps—happy fixing!

Carsten Frauenheim -

What tool kit should I use for this?

Lucas Lee -

the second picture is m1 air right？

the antenna cable position does not match later picture

Paul -

Step 3

Peel back the tape covering the battery connector enough to reveal the connector underneath.

This image is incorrect correct for the A2179 EMC 3302 model, also doesn’t match the next image in this guide

Steven Friar -

There is other guide for the model you reffer to, I was using that one until i realize it was different, this is the one you are looking for: MacBook Air 13" Retina Late 2020

Marco Rojas -

I initially thought the image was incorrect, but I was just looking for the connector in the wrong place. This picture IS correct for the A2179 EMC 3302. Note that the connector is on the left side of the heat sink (the black thing with parallel ridges in the picture and on the computer), and the connector wires gather together towards the left the side of the computer, not the back. Note that "left side" assumes the Air is upside-down, with the hinge on the side farthest away from you (I'm not doing the "right speaker is on the left side because it's upside-down" thing that iFixit does in step 5).

Bryan Gillson -

How do you find out if you have a Retina Late or Retina Early model?

Inji E -

Step 4

Use a spudger to slide the battery connector parallel to the logic board and out of its socket on the logic board.

It’s stuck can’t get it out

Jeansceem Jeansceem -

Step 5

Use a T3 Torx driver to remove the 1.4 mm screw securing the antenna cable cover.
Remove the antenna cable cover.
When replacing the antenna cable cover, make sure the keyed side goes towards the hinge edge of the MacBook Air.

Step 6

Use a pair of tweezers to grip the antenna connector close to its base.
Pull straight up to disconnect the cable.
Repeat for the second antenna cable.

This connector is extremely fragile! I always apply a very fine flat screwdriver head to the connector on the system board so it does not pull out!

Ross Elkins -

Step 7

Use a T3 Torx driver to remove the two 1.5 mm screws securing the display cable connector cover.
Remove the display cable connector cover.

There are two smaller connector covers that cover a narrow ribbon connector. (One of them is visible in the Step 7 photo to the right of the display cable connector cover.) These covers don't have to be removed for disassembly. But my replacement display didn't include them, so I salvaged the covers from the broken display when I reassembled.

Jeff Sharman -

im running into an issue where the screws are t4 instead of t3, the t3 is loose and prone to stripping

CJ Lazer -

Step 8

Use the flat end of a spudger to pry the display cable connector straight off of the antenna board to disconnect it.
To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Do not press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

I have noticed that replacement assemblies from Ifixit and perhaps other suppliers do not have the smaller covers for the side cables to the left and right of the main display cable installed! Remember to transfer them from your old display to the new or you will have a POF waiting to happen!

Ross Elkins -

Thank you for you advisory on the connector covers. Please tell me what POF stands for?

Macrepair SF -

I'm guessing POF=point of failure.

maccentric -

Step 9

Use a T5 Torx driver to remove the six screws securing the antenna bar:
Four 7.4 mm screws
Two 4.5 mm screws

Step 10

Insert the pointed end of a spudger into the gap between the antenna bar and display hinge.
Pivot the spudger against the hinge to pry up the end of the antenna bar.
Repeat for the other end of the antenna bar.

Step 11

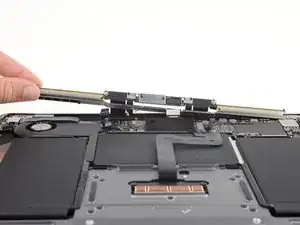

Use your fingers to pry the antenna bar straight up and away from the case.
The antenna bar is secured with some light adhesive and may require some force to dislodge.
Thread the antenna board through the opening in the middle of the antenna bar.
Be careful to not put any strain on the antenna bar's ribbon cables.
Remove the antenna bar.
During reassembly, ensure that the display cable doesn't become trapped underneath the antenna bar.

this is a bit tricky - the last one i worked on was held tight by a thin black tape, similar to the stretchy tape underneath batteries. this tape is near the motherboard underneath the path of the ribbon cables to the lcd. underneath this tape is a groove cut that the antenna slips into. actually 3 grooves, the 2 underneath the black tape and a longer channel in between. this channel grabs onto a thin part of the antenna that slips into these channels and some bumps help to “wedge” it into place by a pressure type fitting. kind of reminds me of edge of the shield on some ipads and older iphones. the bumps fit into areas and “grab” onto the area next to them. trying to create a word picture. maybe ifixit can add a real picture. definitely slows you down when you encounter resistance - don’t want to force anything. saw some dude on youtube yanking and pulling and i started yelling at him.

greg -

Thanks for your advisory, Greg. I can confirm the sticky tape about 1/2" long. It's to the left of the LVDS cable and attached to board. Looks like antennae wall sticks on vertically. Gentle prodding with spudgers from all angles finally frees it. Be patient with it.

Macrepair SF -

Conclusion

Compare your new replacement part to the original part—you may need to transfer remaining components, cable covers, or remove adhesive backings from the new part before installing.

To reassemble your device, follow the above steps in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Check out our Answers community for troubleshooting help.
