Lenovo ThinkPad T16 Gen 3 CMOS Battery Replacement

Written By: Nick Schultz
  • Comments: 0
Lenovo ThinkPad T16 Gen 3 CMOS Battery Replacement

Difficulty

Moderate

Steps

8

Time Required

15 - 30 minutes

Introduction

Follow this guide to replace the CMOS battery in your Lenovo ThinkPad T16 Gen 3 laptop.

The CMOS battery (sometimes referred to as the RTC/"Real Time Clock" battery) helps maintain system settings such as the date, time, and BIOS settings when your laptop is turned off. If these settings aren't being maintained between power cycles, you may need to replace the CMOS battery.

The Lenovo part number is 5B11M63536. This replacement part includes new pre-applied adhesive, but if yours doesn't, use thin, double-sided tape instead.

  1. xxNOPMoGoWYkTGQE
    xxNOPMoGoWYkTGQE
    GUnBXysNB2NxAUKS
    YNC2EdVroQAhUjPC

    • For your safety, discharge your battery below 25% before disassembling your laptop. A charged battery may catch fire if damaged. If your battery is swollen, take appropriate precautions.

    • Completely shut down your laptop (don't just put it in sleep mode) and disconnect all cables.

    • Flip the laptop upside-down, and rotate it so the screen hinge faces towards you.

  2. RbWgoD2uaUqYYHy2
    RbWgoD2uaUqYYHy2
    3yXt1uueHCgFQBV2

    • Use a Phillips screwdriver to fully loosen the seven captive screws securing the base cover.

  3. xyP2CA2xDRghTaRR
    xyP2CA2xDRghTaRR
    BIgZKvTMkNb2MBQK
    ahNyGAEmIWqnirIT

    • Insert your fingernail or an opening pick into the gap between the base cover and keyboard deck, next to one of the screen hinges.

    • Pry up the base cover until the clips unfasten.

  4. rQiUEKGPLWPWJRrm
    rQiUEKGPLWPWJRrm
    cb5tJFXBhvJPoSPQ

    • Grasp the base cover along the screen hinge edge and lift slowly to unfasten the remaining clips.

    • Lift and remove the base cover.

    • During reassembly, lay the base cover into the frame, inserting it into the tabs along the battery edge. Press down firmly around the perimeter to reengage all the clips.

  5. tkYPg2EhajlcGZG6
    tkYPg2EhajlcGZG6
    kewyINYhKrkeCqNM

    • Because of the battery connector's design, the only way to disconnect the battery is by physically removing it.

    • Use a Phillips screwdriver to fully loosen the two captive screws securing the battery connector.

  6. VbFsBodaaINR1abt
    VbFsBodaaINR1abt
    OBXrUehAO2CM5QdQ
    YXbYLqdNKDUOLNDm

    • Lift the edge of the battery with the connector to disconnect it.

    • You may feel a little resistance from the battery connector as it disconnects—that's normal.

    • Remove the battery

    • During reassembly:

    • Slide the plastic tabs on the long edge of the battery into their recesses in the frame.

    • Lower the battery into place so the connector goes over its socket.

  7. 1fshRYKAtNNnmWTJ
    1fshRYKAtNNnmWTJ
    3yIR6TW5xSbnVi5O
    DajVCVwUdSdaK6lP

    • Use your fingernails to grab on the lip located at the back of the CMOS battery connector, labeled "JRTC1."

    • You can also use the tip of a spudger to push the connector out from the front.

    • Unplug the connector from the motherboard.

  8. uoQLBuOXBgWxhVsL
    uoQLBuOXBgWxhVsL
    Cv3wQkc4tBQAw2bL
    SLWPq1KoQqNNIAeO

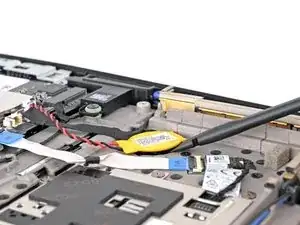

    • Insert the flat end of a spudger underneath the CMOS battery and pry it up to separate the adhesive securing it to the frame.

    • Remove the CMOS battery.

    • If your replacement battery doesn't include new adhesive, use thin, double-sided tape to secure it to the chassis.

Conclusion

Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before you install it.

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.
