Framework Laptop 16" Webcam Module Replacement

Written By: Alex Diaz-Kokaisl
  • Comments: 1
Framework Laptop 16" Webcam Module Replacement

Difficulty

Easy

Steps

8

Time Required

10 - 15 minutes

Introduction

Use this guide to replace the webcam, aka "webcam module," in your Framework 16" laptop.

  1. FyZqYQXlGGSUVdfO
    FyZqYQXlGGSUVdfO
    ddbQkHnXk5QEvLfj

    • Unplug all cables and fully shut down your laptop.

    • If your repair requires a spudger, a T5 Torx, or a Phillips screwdriver, you can use the included Framework screwdriver. Whichever works best for you!

    Step 1 is not really necessary, it is up to you. The keyboard, trackpad, etc, can be hot-swapped, meaning you can remove them at any time when the laptop is off OR on. The keyboard and the macropad/numpad/spacers/LED matrixes all lose power anyways when the trackpad is slid out of its resting spot. Turning off the power or doing a restart may help if some software of yours isn't happy with you swapping your keyboard on the fly.

    ChazIsBuns -

  2. qLKFBdwHbQ1G3kBv
    qLKFBdwHbQ1G3kBv
    rFsMgVMOBROMqVDf
    RKrCCc6N1jyoKSRn

    • The bezel is secured with magnets!

    • Slide your fingernail under the inside edge of either bottom corner of the bezel.

    • Pull the bezel away from the screen to release the first few magnets.

  3. LXKfs1vvVxx2TyYV
    LXKfs1vvVxx2TyYV
    jFv66UlfoSIpvCYb
    YSNyOLKkaaGhVwke

    • Lift the bezel around the perimeter of the screen until all of its magnets are released.

    • Remove the bezel.

  4. NcrHQMrytvKuexxJ
    NcrHQMrytvKuexxJ
    SHgIiHds2bMdxEkL

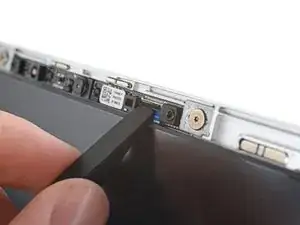

    • Use the flat end of a spudger, or a clean fingernail, to lift up the locking tab on the webcam module ZIF connector.

  5. ZBxFaj23KfVpZqF1
    ZBxFaj23KfVpZqF1
    ZnSOhhKInTjVJRcU
    Ep23CCMaVBEgaFFJ

    • Use a T5 Torx screwdriver to remove the two 2 mm‑long screws securing the webcam module.

    • The screws thread through metal brackets. If they come off with the screws, you can skip the next step.

    • During reassembly, support the screen frame with your other hand as you reinsert screws to prevent the laptop from accidentally tipping over.

  6. B3MEOHlxmsXoCndr
    B3MEOHlxmsXoCndr
    NIJrsLOF4FbROCIF
    kFBbYpRAnuVDfnVp

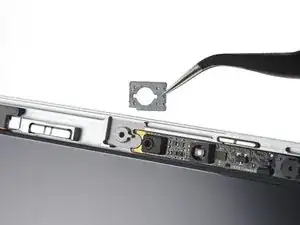

    • Use tweezers, or your fingers, to remove the two metal brackets on both ends of the webcam module.

  7. nZHYGKrUngGAqTHv
    nZHYGKrUngGAqTHv
    SGG2ZdVKfmpZufYM
    AagObxhRFgTmkiBQ

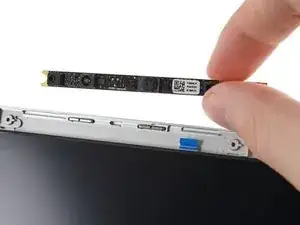

    • Use tweezers to lift the right side of the webcam module until the cable slides out of the ZIF connector.

    • Remove the webcam module.

  8. AVaksZJGkc4RaLA4
    AVaksZJGkc4RaLA4
    DRP2MbeJw3aeXehu
    rZGEZs6gV6wvMUu2

    • Reconnecting the webcam module is a little tricky. If you're having difficulty, you can reposition the display to give the webcam cable more slack.

    • During reassembly, follow these instructions to reinstall a new webcam module:

    • Use tweezers to gently bend the webcam cable away from the screen frame.

    • Use your other hand to align the webcam module over the cable and lower it into place.

    • Make sure the webcam module sits level with the display before flipping down the cable locking tab and continuing reassembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.
