DualShock 4 Button Flex Board Replacement

Written By: Devnol
  • Comments: 0
DualShock 4 Button Flex Board Replacement

Difficulty

Moderate

Steps

7

Time Required

20 minutes - 1 hour

Introduction

The official guide has been updated and can be found here.

This guide will show you how to repair a DualShock 4 with a not working button. This guide is ONLY for JDM-001 / JDM-011 Motherboard models. (CUH-ZCT1 Controllers)

  • Before ordering the replacement part, open up your controller using the teardown guide to determine your motherboard model No. (usually behind the battery tray).
  • I do not have any responsibility for ordering the wrong model. I warned you!

  1. HQUiQ5MNXit6tYFO
    HQUiQ5MNXit6tYFO
    PjiZwlZ5pSkDqsXX
    RIbCdJUUFUuHjsXQ

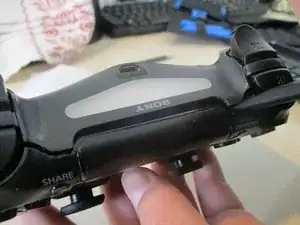

    • Unscrew these 4 PH0 Screws to open the back cover.

    • Carefully pry around the cover with a spudger. Pull the back part to open the enclosure.

    • Be careful not to pull too far though, because there is a fragile connector connecting the light bar assembly.

    • Disconnect the light bar ribbon cable.

  2. IsqlRT6xnKYJRMFF

    • Note that when opening the case, the following parts might fall off: L2 Trigger, R2 trigger, 2x trigger springs. If they don't, remove them and keep them in a safe place for later.

  3. gqqVV453JD6224BH
    gqqVV453JD6224BH
    QHFUT2H2ZFlbU4Aq

    • Disconnect the battery connector and remove the battery.

    • And the touch bar cable. Push the cable carefully through the small hole in the plastic midframe.

  4. sutp1l6FMO4sHTxc
    sutp1l6FMO4sHTxc
    dECeSDoM2gngRdbp
    MVGuiZELkgZm4YcT

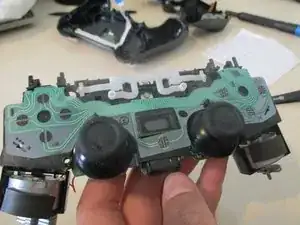

    • Remove the lonely, PH1 screw holding the motherboard and the midframe.

    • Remove the front cover from the midframe. If it gets stuck, you may need to jiggle the joysticks.

    • Take care while jiggling the sticks and removing the cover, because the vibration motors that are soldered on the board may get detached, which can be very frustrating to reassemble.

  5. CXXd6Fa1ZowOuw4T
    CXXd6Fa1ZowOuw4T
    jefsqL3m1ChJQhq5
    Q1VDINxOpg1cev4D

    • Starting from the bottom, carefully remove the board from these 4 latches. It might also get caught on the bottom of the speaker grille.

    • Then, remove the bumper buttons and the contact pads outward from for them and the triggers. A slight force must be applied.

    • The top of your controller should now look like pic. 3 Then, unlatch the board from there as well

    • To be continued...

  6. BmvtMq3dkGT46QnN
    BmvtMq3dkGT46QnN
    ogoXxwDMKPhb2kSd
    3TQLQZnCiLYUPfsr

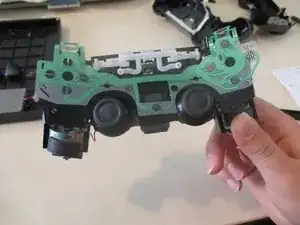

    • Now that your controller looks something like pic 1, open the midframe Partially.

    • Again, be careful here, because the vibration motors are hard-soldered on the board.

    • Remove the two more latches on the sides of the contact pins.

    • Pull the board out carefully.

  7. jyvKeyuCpeqQKJTZ

    • Get your new button board and follow the steps in reverse order to reassemble your device. If you need help re installing the trigger buttons (trust me, it is hard to do so) follow this guide: PS4 Dualshock 4 trigger reassembly

Conclusion

To reassemble your device, follow this guide: PS4 Dualshock 4 trigger reassembly
