PS4 Dualshock 4 trigger reassembly

Written By: Devnol
  • Comments: 6
PS4 Dualshock 4 trigger reassembly

Difficulty

Easy

Steps

4

Time Required

10 minutes

Introduction

I decided to create this guide because i got *triggerred* trying to reassemble the PS4 Dualshock 4 Controller

  1. pHG6rWXTRCBceLGX
    pHG6rWXTRCBceLGX
    DH26b3PMNSmS2QEH

    • Remove these two triggers and springs from the backplate.

    • Find which trigger goes on which side and put the springs in the trigger part facing towards the inside of the controller.

  2. ka3BSrtkWq2yh5OR
    ka3BSrtkWq2yh5OR
    w1eUhGONmh3M1FBC

    • On these two clips...

    • Push down the trigger until it clicks on both sides.

    • Make sure that the one spring part is inside the rail (marked cyan) and the other outside the whole assembly (green).

    The top part of the spring will slide down into the rail(groove/cutout) rather than the bottom part of the spring sliding down into the rail and the bottom part of the spring will push up against the concaved interior of the trigger housing. Hope this helps.

    Steve Dave -

    Yes, this photo is wrong. One arm of the spring is in the rail the other arm is inside the trigger pushing the trigger out to its normal position. The “green” arm goes in the rail & the “blue” arm goes inside the trigger. Rotate spring about 90degrees counterclockwise.

    J Moore (mrwarcriminal) -

  3. Na1yLEhNQAyVJFiT

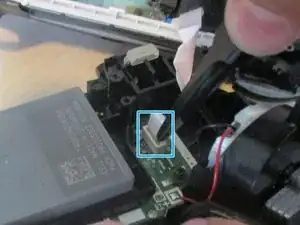

    • Connect the light bar cable using your fingers. Make sure it is fully pushed down and that is plugged in the right way.

  4. sVjYUh2XJx6RCXmi
    sVjYUh2XJx6RCXmi
    UbFPjykKUl16doKA

    • close the cover starting from the side of the triggers. Don't worry if it's a bit hard to do so, but be careful so you don't break the plastic between the trigger and the bumper.

    • Push down until it clicks everywhere.

    • Finally, screw in these four screws using a PH0 screwdriver.

    Excelente, excelentes fotos, me ayudo muchisimo

    Pedro Bortot -

Author

Devnol

Member since: 01/12/18

2792 Reputation

3 comments

Thank you so much! I had a ps4 controller that had a broken r2 button and i had gotten a replacement (which is now having battery issues) Today I took the old controller apart… the spring had come out of the rail. That was it!

Dee -

This guide is wrong. The top part spring should be inside the trigger, if you look at the other trigger it’s not exposed.

https://pureplaystation.com/wp-content/u...

Angus Yung -

Thanks for pointing it out. I do not have this controller anymore as it was from a repair job so unfortunately, I cannot correct it. If you or someone else happens to have one and is able to take high-quality pictures I’d be more than grateful to accept your correction.

Devnol -
