DualShock 4 Battery Replacement

Written By: Mark
  • Comments: 0
DualShock 4 Battery Replacement

Difficulty

Easy

Steps

5

Time Required

10 - 15 minutes

Introduction

The official guide has been updated and can be found here.

Use this guide to replace the 3.7 lithium-ion battery inside the DualShock 4.

  1. IOo6WGYZYXe3FgxC

    • Using the Phillips #00 Screwdriver, remove the four 6.0 mm screws securing the rear cover to the controller.

    • Do not forcefully loosen the screws, as it will amount to permanent damage of the threads, making removal impossible.

  2. aeEtZOsBKR5JMM2J
    aeEtZOsBKR5JMM2J
    6h5aVGV6O5ssymAd
    dRONJOXRHeSDdpFL

    • Four fragile plastic clips hold the casing together. You can see their locations more clearly in this guide.

    • The clips help hold the seams together. If you break these clips, the controller will still work.

    • Beginning with the left handle:

    • Pinch the left handle of the controller to introduce an opening.

    • Wedge a plastic opening tool into the opening and slide it up towards the joystick.

    • Pull down on the plier to crack open the casing.

    • Repeat these steps for the right handle.

  3. 2x5OGtJKny4kfdMq
    2x5OGtJKny4kfdMq
    GLyJDACc4Yel1Vc2
    NnxoILTrl2FnxVDa

    • Wedge a plastic opening tool into the case-splittings and pull down to crack open the casing near the following buttons:

    • Share button

    • Options button

    • Split the plastic covers of the controller apart, taking note that they will still be attached by circuit board ribbons.

    • Three small pieces are often released from the framework. To prevent loss, maintain a controlled work field.

    • 2 Trigger Springs

    • 1 Grey Reset Button Extension

  4. jhmXq12QvXrVUe3t
    jhmXq12QvXrVUe3t
    s3ofOKmDPmTeHDO1
    cWqoWouAmSYSOnfE

    • Detach the motherboard ribbon connecting the two sides of the controller by pulling it straight out with your fingers.

    • Note the orientation of the cable and make sure it faces the right way when you reconnect it.

    • After the two halves are separated, place the top of the controller off to the side.

  5. JFSegwJUdbwMfmMo
    JFSegwJUdbwMfmMo
    LVLNJgChTlDorDSG
    q1XwODHSoiUGPKdV

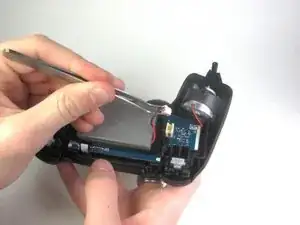

    • Using the blunt forceps, remove the battery plug by gently rocking the forceps side-by-side to loosen the plug.

    • After removal of the plug from the motherboard, the battery can be lifted off of the controller.

    • Hasty removal of the battery plug could warp the plastic grips of the plug.

Conclusion

To reassemble your device, follow these instructions in reverse order.
