Introduction

Follow this guide to build a flashlight using the Basic LED Flashlight DIY Soldering Kit.

This guide covers the basics of soldering through-hole components in order to assemble the kit. If this is your first time soldering or you'd like to learn more about it, check out our guide on soldering and desoldering connections.

  1. xoiHUI1XOH4BCPNC
    xoiHUI1XOH4BCPNC
    JhUxViN1UgnAAmL4
  2. U5bA2UeXIKLBAPRu
    • Your flashlight kit contains the following parts:

    • Circuit board

    • 10 Ω (brown-black-black-gold-brown) resistor

    • CR2032 battery connector and foam block

    • Don't throw away the foam block—you'll need it later on.

    • Toggle switch

    • White LED

    • CR2032 battery

  3. DK1t63bCUQWllMWu
    DK1t63bCUQWllMWu
    UMo5KvDJoZZLBJBW

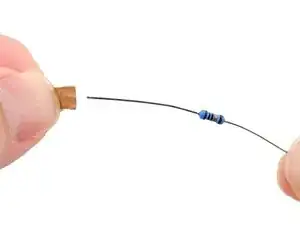

    • Use your fingers to carefully remove the two protective covers from the resistor leads. Avoid bending the resistor leads during removal.

  4. JMVlHhu1LeqMDxRB
    JMVlHhu1LeqMDxRB
    FbxojfDZKFEjhIIc
    • Hold the resistor body with one finger and bend the leads over the edges of that finger 90‑degrees into a U‑shape.

    • If this doesn't work, use tweezers to bend the leads about 1 mm from the resistor body.

  5. XUO5dW1MfYUdWweg
    XUO5dW1MfYUdWweg
    FAWCMNXCLPQLJWen
    cEUBDExLtfuLy5ON
    • Hold the circuit board so the front (the side labeled "Let Your Light Shine" at the top) is facing you.

    • The resistor is symmetrical and can be inserted in any orientation.

    • Insert the resistor leads through their holes on the front of the circuit board.

  6. Dwdqa5IpaulGqbej
    Dwdqa5IpaulGqbej
    liXfjrhUa3TAtV5R
    tMsLFSHoddsZYBBJ
    • Hold the resistor flush against the front of the circuit board.

    • Flip the board over.

    • Bend the resistor leads until they're parallel to the circuit board. This will keep the resistor still while you solder it to the board.

  7. bvY5usIkssBRwLnd
    • Use your helping hands to secure the board so the leads are facing up.

  8. XJP3NApjrQkDDQTU
    XJP3NApjrQkDDQTU
    ihyEixMTcPPvvTeE
    MNtu1HDaVXVhf4Sc
    • Put on your safety glasses.

    • Turn on your soldering iron. If your soldering iron has temperature control:

    • Set it to 300 °C (~570 °F) if you're using leaded solder

    • Set it to 375 °C (~700 °F) if you're using lead-free solder

    • Clean the tip of your soldering iron. If you're using a cellulose sponge, wet the sponge with distilled water until damp and quickly wipe the tip across it. If you're using brass wool, stab the tip into the wire a few times.

    • Melt a small glob of solder onto the tip of the iron. This is called "tinning the tip" and will help with heat transfer.

    • You'll likely see some wispy smoke as you melt solder. This is mostly the rosin-core flux that's built into the solder wire. Flux helps molten solder flow, but gets vaporized over time.

    • If this is your first time using a soldering iron, repeat the cleaning and melting procedure a few times to get a feel for how molten solder handles and how much solder the tip can hold. Clean your tip before continuing.

  9. xvNOdZEQS4DEhqUs
    xvNOdZEQS4DEhqUs
    jMNywSMLLXGfaSXN
    WIFZGDAJEhaYYRWA
    • In this step, you're going to heat the solder pad and the resistor's lead so that they'll readily melt the solder wire.

    • Press the tip against the circuit board's solder pad and the resistor's lead for a few seconds to heat them both. Angle the tip so it has maximum contact with the pad and lead.

    • If you heat the circuit board continuously for more than 10 seconds, the excessive heat may damage the solder pad or resistor.

    • Feed the solder wire into the heated area until there's a concave pool ("mini volcano") of solder surrounding the lead.

    • Don't feed the solder directly onto the tip as it won't flow properly into the pad and lead, causing a weak connection.

    • The volcano should form within a few seconds. If the solder doesn't adhere to the pad, apply flux to the pad or increase the temperature.

    • Remove the solder wire first, then remove the soldering iron from the pad.

    • Repeat this process for the second resistor lead.

  10. AFR3nF2bWrDFYZkT
    • Congratulations—you've soldered the resistor to the board!

    • If the solder joint doesn't surround the entire lead, reheat the joint and add more solder.

    • Check if any solder unintentionally bridged with a different joint. If so, carefully use your iron to heat the solder between the joints and separate the bridge. If the bridge doesn't want to separate, desolder it and try again.

    • Like any skill, practice makes perfect. If your first solder joint doesn't look picture-perfect, that's OK! It takes a few attempts to get the hang of the movement and timing.

  11. G5u2oFHsqIEcDget
    G5u2oFHsqIEcDget
    MYOMxxO6qxoFSBHG
    • Remove the battery connector from its foam block.

    • Don't throw away the foam block—you'll need it for future steps.

  12. OkTbX2uhQsQWAn3D
    OkTbX2uhQsQWAn3D
    WPG2vW5nqW5AfQNf
    • The battery connector is NOT symmetrical and must be oriented correctly using its outline on the board.

    • Place the battery connector on its outline on the front of the circuit board. Make sure the leads go through their holes in the board.

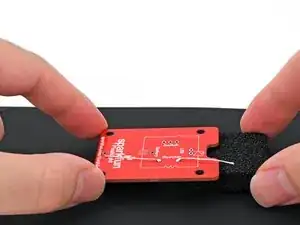

  13. mQZaXOSALFgDrXEk
    mQZaXOSALFgDrXEk
    krW2bxYxslSqOnQW
    5R4bAvDJLymjBvDm

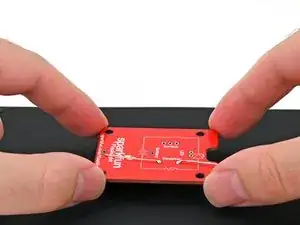

    • Hold the battery connector flush against the front of the circuit board.

    • Flip the board over and set it down so the battery connector is resting on your work mat or surface.

    • Place the foam block underneath the top edge of the board (the edge with the notch) to keep it level while you solder.

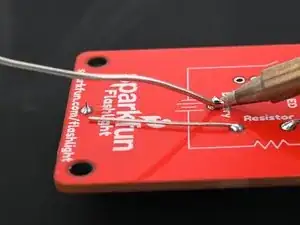

  14. YcOSr2RsjYclXGUM
    YcOSr2RsjYclXGUM
    WEK3WwRRubUDJVSl
    5cpmeod4LyZrCYYd
    • Press the soldering iron tip against the circuit board's solder pad and the battery connector's lead for a few seconds to heat them both. Angle the tip so it has maximum contact with the pad and lead.

    • Feed the solder wire into the heated area until there's a concave pool ("mini volcano") of solder surrounding the lead.

    • Don't feed the solder directly onto the tip as it won't flow properly into the pad and lead, causing a weak connection.

    • Remove the solder wire first, then remove the soldering iron from the pad.

    • Repeat this process for the other battery connector lead.

    • If the second battery connector lead is no longer flush with the board, push it back through while heating the first lead before attempting to solder it in place. If needed, desolder the battery connector and restart this step.

  15. rVF5tYpSWV6EZL1G
    rVF5tYpSWV6EZL1G
    JlsMTRrjBlgE3Rso
    • Double-check that the battery connector is flush with the board and that its solder joints are making a solid connection.

    • If the solder joint doesn't surround the entire lead, reheat the joint and add more solder.

  16. 4ZPdlWiYX1XZBVDy
    4ZPdlWiYX1XZBVDy
    WKTNqYuroWJaTxdU
    E4YIQmxYVBNydsu2
    • The switch is symmetrical and can be inserted in any orientation.

    • Place the switch on its outline on the front of the circuit board. Make sure all three leads go through their holes in the board.

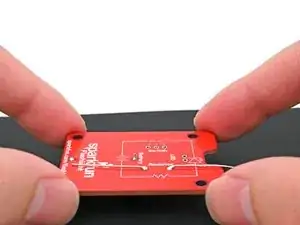

  17. 3BuYtLFxXwhQguvl
    3BuYtLFxXwhQguvl
    sAuxkZxLYeZgLg6d
    YRpoNi3MOfUR3G2G
    • Hold the switch flush against the front of the circuit board.

    • Flip the board over and set it down so the switch is resting on your work mat or surface.

    • Place the foam block underneath the board to keep it level while you solder.

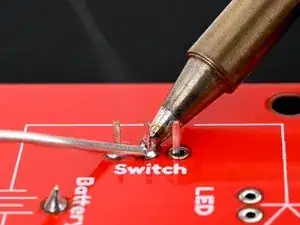

  18. oQHILyZwy6LQRtQO
    oQHILyZwy6LQRtQO
    YTxbghfawTTX1dPF
    Q36GN2LOlApa2aPo
    • Make sure the switch stays flush with the board and the leads stay level with each other while you're soldering. If it becomes crooked, desolder the leads and try again.

    • Solder the three switch leads to the board.

  19. fAOeZTDHwQuSolsP
    fAOeZTDHwQuSolsP
    6SvWtSmAfSgRwKVf
    • Double-check that the switch is flush with the board and that its solder joints are making a solid connection.

    • Check if any solder unintentionally bridged with a different joint. If so, carefully use your iron to heat the solder between the joints and separate the bridge. If the bridge doesn't want to separate, desolder it and try again.

  20. aXUJ4AfLXSgQHtrS
    aXUJ4AfLXSgQHtrS
    5DHHpjSFiAK6Fa56
    MepAh46oUoYkwskL
    • The LED is NOT symmetrical and must be oriented correctly.

    • Insert the LED leads about halfway into the front of the board, with the longer leg in the hole labeled "Long Leg," and the shorter leg in the hole labeled "Short Leg."

    • One edge of the LED's clear epoxy lens is flat instead of round. This flat edge indicates the negative (-) lead.

    • Push the LED towards the board (bending the leads) so the lens fits in the notch between the words "Let Your" and "Light Shine" on the top/front of the circuit board.

  21. QIqLMJsECnkJVt5P
    QIqLMJsECnkJVt5P
    uYJjqIY3dJWYSP5H
    • Flip the board over.

    • Bend the LED leads until they are parallel to the circuit board. This will keep the LED still while you solder it to the board.

  22. oM3ylyhEVOC6A1Tf
    oM3ylyhEVOC6A1Tf
    vk6WAkG53PCJOvam
    WBfiSpQL6eb2sMwM
    • Use your helping hands to secure the board so the leads are facing up.

    • Solder the two leads of the LED to the board.

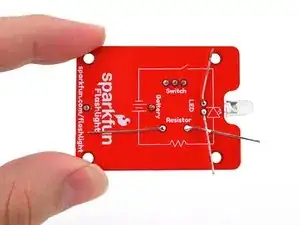

  23. PXxqxSkLkwdUqLxG
    • Check if any solder unintentionally bridged with a different joint. If so, carefully use your iron to heat the solder between the joints and separate the bridge. If the bridge doesn't want to separate, desolder it and try again.

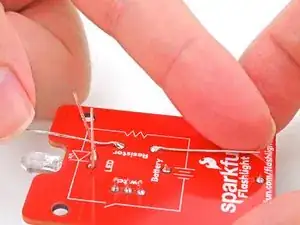

  24. DBDtVrpnuVDqqZkO
    DBDtVrpnuVDqqZkO
    2dstX155b5PpEkfS
    • Bend the resistor and LED leads upwards until they're perpendicular with the board.

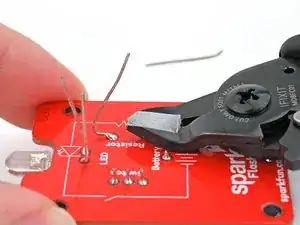

  25. 4EJPWNxXbuGx2TOG
    4EJPWNxXbuGx2TOG
    gwVlETKTRmZCAX4Z
    anVgfDCstVc65vmL
    • Use your flush cutters to trim all the leads until they're no longer poking up past the solder joint from the back of the board.

    • Ensure that none of the wires are long enough to bridge a connection to other leads or poke your hands during use.

    • This is a great time to clean up any residue left from the solder. Apply some isopropyl alcohol to the solder joints and wipe with a lint-free cloth to soak up the flux and alcohol residue.

  26. NPCOLSJ2c6SMcEZ1
    NPCOLSJ2c6SMcEZ1
    VvVqejdUKX4NYD4x
    2HCyofssxvZTk4Ha
    • Set your CR2032 battery in the battery connector with the positive (+) side facing upwards.

    • Press down on the battery until it snaps into the connector.

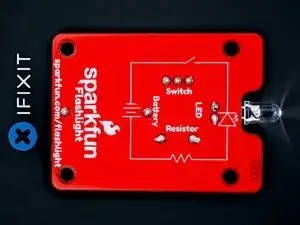

  27. owyO4JmppB3LsBMq
    owyO4JmppB3LsBMq
    UChUH3u2DeTv5ntP
    kYtDoyI2QGoMf4ID
    • Congratulations! You now have a functioning flashlight.

    • If your switch is in the "off" position, turn it on to power up your flashlight.

    • Optionally, write your name in the name tag field.

Conclusion

You've taken the first step toward mastering the valuable and versatile skill of through-hole soldering. With the basics under your belt, you're well-equipped to tackle various electronics projects and repairs. Remember, practice makes perfect, so don't hesitate to experiment and refine your techniques.

To learn more soldering skills, click here.
