Canon GP-E2 GPS Receiver Hot Shoe Teardown

Written By: Arsen
Published: 14/01/20
  • Comments: 2

Canon GP-E2 GPS Receiver Hot Shoe Teardown

Published: 14/01/20

Teardown

Introduction

  1. pVasGlcWJsWvx6QQ

    • Take our reciver

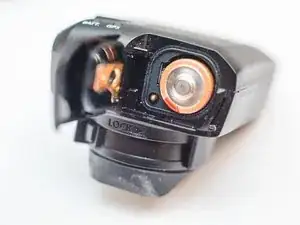

  2. hkSGmHZLDDpJoskA

    • Open battery cover and remove AA battery

  3. UDU2Aj21jikAJHZb
    UDU2Aj21jikAJHZb

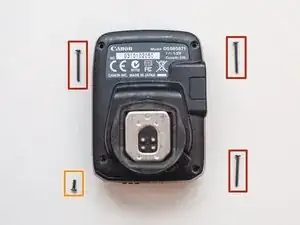

    eHjxUauxM2F4f2Px

    • Remove four screws from bottom part

    • Keep in mind: left lower screw have different long.

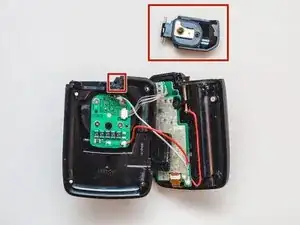

  4. 6VS1vx2MbE2oRoXA
    6VS1vx2MbE2oRoXA
    VxwhJkYEdT2okGGm

    • Separate top and bottom.

    • Remove battery cover from hole

    • Disconnect connector

    • Screw up four screws.

    • Desolder Red ground Pin. Hot shoe now can be removed

  5. yCrF5a1GUkDPjyr1
    yCrF5a1GUkDPjyr1
    ZFevHjBjhKECvJBw
    142JJKjJLMC4pQwl

    • Remove Lock pin with spring. Don't miss them.

    • Remove four crews from bottom. Remove Shoe and remove metal shield.

    • Remove screws with springs

    • Now you disassemble hot shoe.

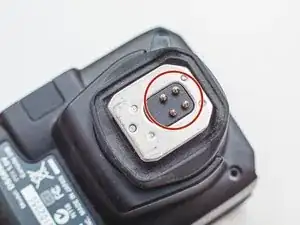

  6. XgLNh2ChysiLLClG
    XgLNh2ChysiLLClG

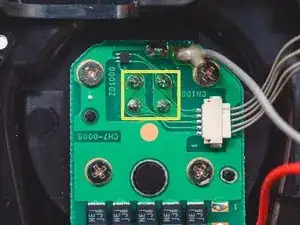

    l5XNNaqwTSAlnaKV

    • Next remove pins.

    • Desolid four pins

    • Remove PCB.

  7. a1bKhy5wHHTayQSM
    a1bKhy5wHHTayQSM
    JZHaMPsp1BReZb1r

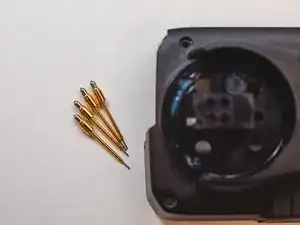

    yrGktJbWPhW11IAI

    • Remove PCB

    • Remove pins from case

Author

Arsen

Member since: 14/01/20

145 Reputation

2 comments

Volgens mij is stap 5 te vroeg afgebeeld. Ik moet de schroefjes van de metalen voet aandraaien, maar kan dat als alleen de rode groundpin is losgesoldeerd?

Louis Dederen -

Hi mate @louisdederen

For removing hot shoe part you should desolder gnd pin and unscrew 4 screws over PCB, pins you may to remove in case if you want to remove PCB from housing

Arsen -
