Benro V2 Ball Head

Loose pan lock

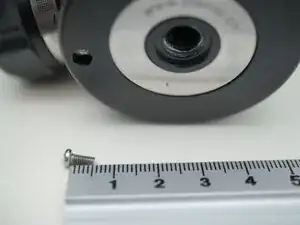

Rotate the base, expose and remove all 4 (four) M3 screws

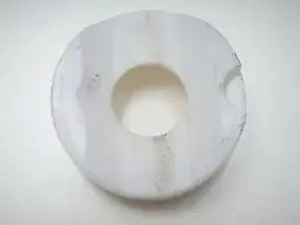

Separate the base

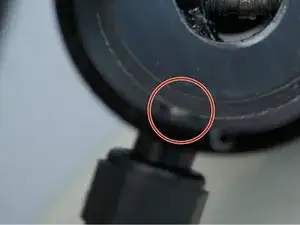

Optional, Heat up here

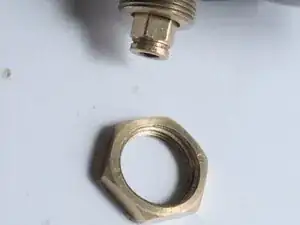

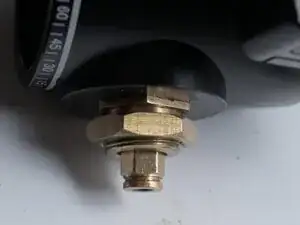

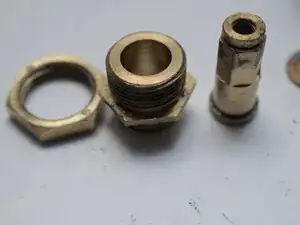

Rotate the pan locking knob all the way out, remove the nut. (My screw is broken)

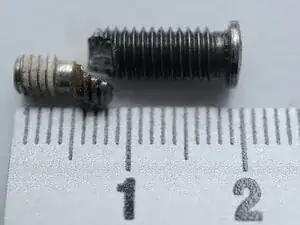

The threads on that screw are M5 and M4

Remove the locking ring

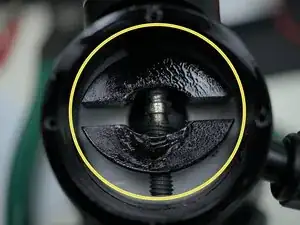

Remove ball locking plates.

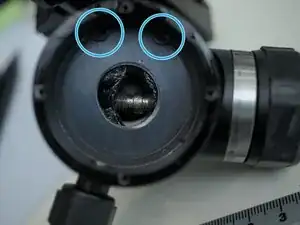

Remove the cover by rotating it counterclockwise. You might need something to grab it, and/or soften the thread-lock by heating. I drilled 2 holes.

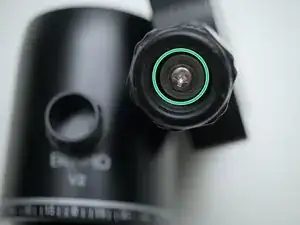

Them remove damp limiter screw, using a coin or fingernail.

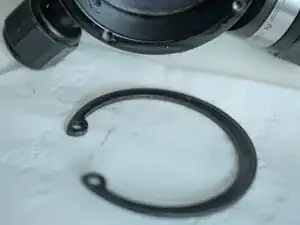

Remove the clip

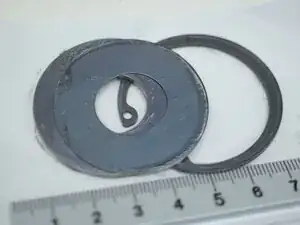

Remove washers

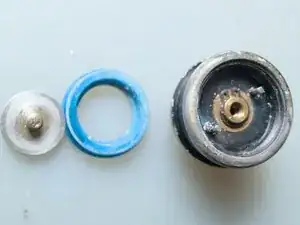

Pull off the knob

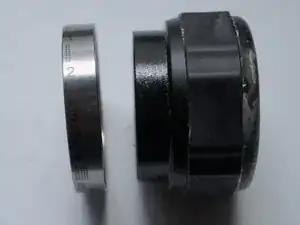

And the friction scale.

Turn it counterclockwise.

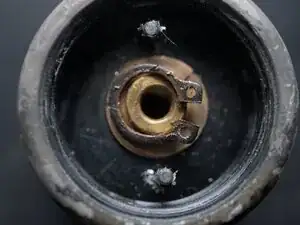

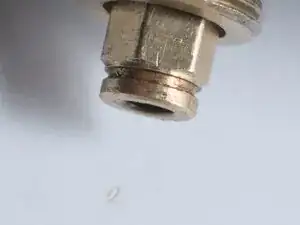

Heat this nut to ~ 150C, and remove it

I forgot to take photo of that.

forgot to take photos. just remove this thing

Just remove it

Remove the cap

unscrew

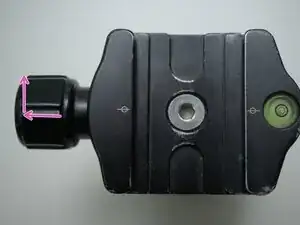

Pull and rotate to remove the knob

Then the ball is free. no photo here.
