iPhone 16 Pro Max Battery Installation

Written By: Arthur Shi
  • Comments: 0
iPhone 16 Pro Max Battery Installation

Difficulty

Moderate

Steps

4

Time Required

1 - 3 hours

Introduction

Installation steps for the battery in the iPhone 16 Pro Max.

  1. n4hokwOMi1C5uTs6
    n4hokwOMi1C5uTs6
    lPJboXAnwnooEapd

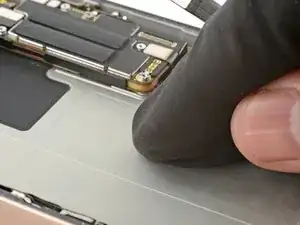

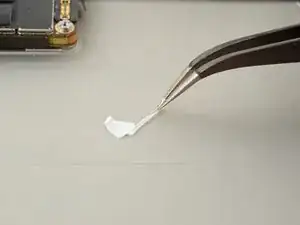

    • Remove any remaining adhesive from the battery recess. Wipe the frame surface with a lint-free cloth and a few drops of isopropyl alcohol.

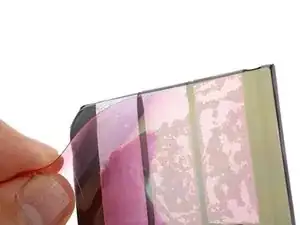

  2. wIS1YTiZ6cFPZtNT

  3. tffMPhoUbCaK1PVB
    tffMPhoUbCaK1PVB
    b1HHKmjUa5RfmdfP

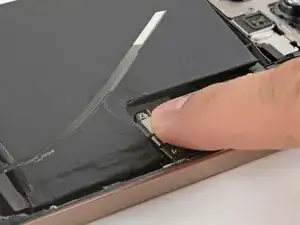

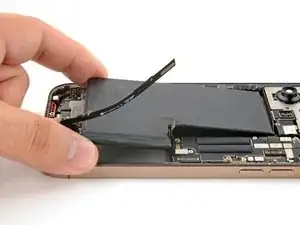

    • The battery adhesive is very sticky! Be careful as you align the battery in its recess—once it sticks, you won't be able to realign it.

    • Lower the battery partially into its recess.

    • Temporarily connect the battery to the logic board to ensure that the cable reaches.

    • Lay the battery in its recess.

  4. B1wOxo6BihWBWIyy
    B1wOxo6BihWBWIyy
    iqha6IFasVKCHLAn

    • Use your fingers to press firmly against the battery for ten seconds to bond it to the frame.

    • Disconnect the battery from the logic board.
