Sony MVC-FD200 LCD Display Screen Replacement

Written By: Nathan Cordeiro

Comments: 0

Sony MVC-FD200 LCD Display Screen Replacement

Difficulty

Difficult

Steps

Time Required

15 - 20 minutes

Introduction

This guide will walk you through the steps needed to safely replace the damaged LCD screen, ensuring that your camera looks and works as good as new. Whether you're a DIY enthusiast or just looking to save on repair costs, this step-by-step tutorial will help you complete the replacement process with minimal tools and effort. Let's get started on bringing your Sony MVC-FD200 back to life!

Tools

Step 1

Using your finger, slide the tab on the battery door up to release the battery latch.

Step 2

Lift the battery door to reveal the battery compartment.
Push the gray lever to the left side to remove the battery.
If any other repairs are needed, make sure to carefully remove the battery to avoid any electric shock or short circuits during repairs.

Step 3

Turn the camera so that the top is facing down towards the table.
Using the Phillips #00 screwdriver, remove all 2.0 mm screws with the arrows facing towards them.

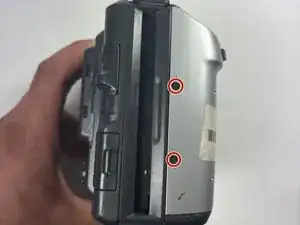

Step 4

Flip the camera on both sides and remove the rest of the screws with arrows facing towards them.
Remove the 2.0 mm screws with the Phillips #00 screwdriver for both sides of the camera.

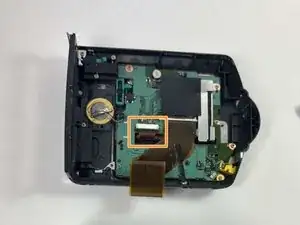

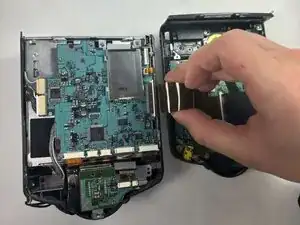

Step 5

Detach the ribbon cable that connects the two halves of the device to split them apart.
Gently pry up the black plastic tab to slide out the ribbon cables.
Be gentle because this component is thin, but do not be afraid to damage the ribbon cable during removal. Add force progressively in small amounts.
