Sony Handycam HDR-HC1 LCD Replacement

Written By: Ella Snyder
  • Comments: 1
Sony Handycam HDR-HC1 LCD Replacement

Difficulty

Easy

Steps

6

Time Required

10 minutes

Introduction

Use this guide to replace the LCD screen of the Sony Sony Handycam HDR-HC1 video camera.

  1. nlQjqFJULxhpIy2i

    • Take off the top and bottom screws on the LCD shell

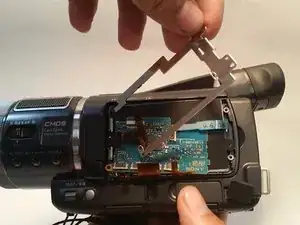

  2. kNWa1VMbePR2SHGB

    • Remove screws from the metal shield that is situated on the microchip

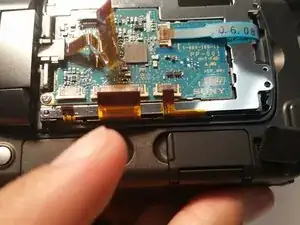

  3. OiYQOVSHsIoUwSYX

    • Remove the ribbon connections from the microchip

  4. BIWTNJyIpjNZHBPQ

    • Remove the microchip

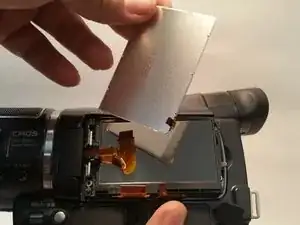

  5. ESHgp6VfikJAHPyR

    • Remove the LCD in the shell

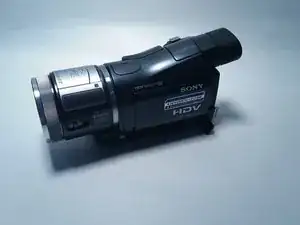

  6. BHKipHgXiNXsGKjl

    • Replace the LCD with a new one and work backwards on the steps to put the video camera back together and you have completed the IFixit Guide

    Gd day..

    Where can I can a replacement touch screen?

    Mohd Ghazali Mohd Yunos -

Conclusion

To reassemble your device, follow these instructions in reverse order.
