Introduction

Use this guide to replace a Shark Rocket HV322 Filter if it has lost suction.

The filter acts to prevent any dirt or debris from getting into the impeller fan of the vacuum's motor. If the vacuum has poor suction, the filter may be dirty and need to be replaced.

Before beginning, make sure the vacuum is turned off and unplugged.

  1. hRQajYiKGGXA2BIP
    hRQajYiKGGXA2BIP
    csXUcvnViXxXPHxH
    • Detach the wand from the handheld vacuum using the wand release button.

  2. RlUTyhltEqkmiZWE
    RlUTyhltEqkmiZWE
    TEQxc62SgXx1DWkF
    pPUaCDQDmqk3DekF

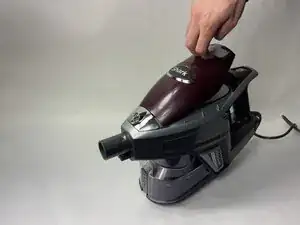

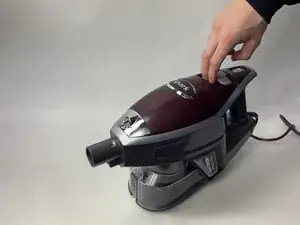

    • Remove the cap to expose the filters

  3. QBwo62WqvqekqaPK
    QBwo62WqvqekqaPK
    t6hbxbyp2Iyc5QMa
    WdtjjAKZ2pyjep5O

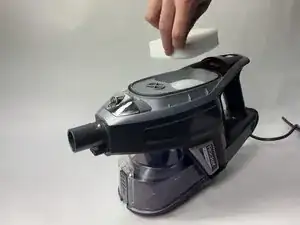

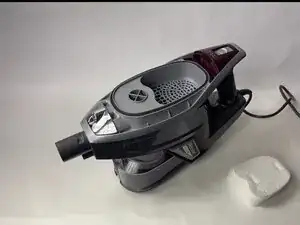

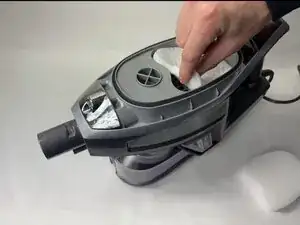

    • Remove both filters. Once removed, wash both filters with warm water.

    • Allow to dry for completely before you put them back into the vacuum.

Conclusion

To reassemble your device, follow these instructions in reverse order.
