Introduction
This is how you can easily replace the battery of your SGIN X15S. If the battery is old and no longer holds a charge, this guide is a good solution. While working on your device, if you notice that the battery is swollen, stop your replacement and follow the swollen battery disposal guide. Before working on your device, ensure that it is turned off and completely unplugged from any power sources.
-
-
Remove the eight top and middle 7.3 mm screws using the Phillips #0 screwdriver.
-
Remove the six bottom and side 4.4 mm screws using the Phillips #0 screwdriver.
-
-
-
Use the nylon spudger to gently pry a bit of the back panel open. With the opening pick, go all the way around until the back panel is loose.
-
Pull the back panel off the laptop.
-
-
-
Gently remove the tape holding the battery's cord to the motherboard, followed by the tape in the middle of the cord.
-
-
-

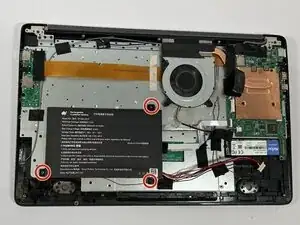

Using the Phillips #0 screwdriver, remove the three 4.4 mm screws attached to the battery.
-

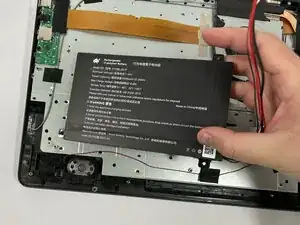

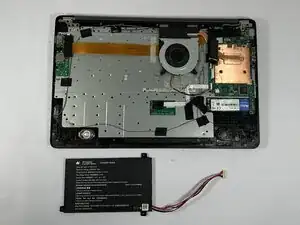

Remove the battery.
-
To reassemble your device, follow these instructions in reverse order.
