Introduction
This is the guide for removing the back panel on the SGIN X15S.
-
-

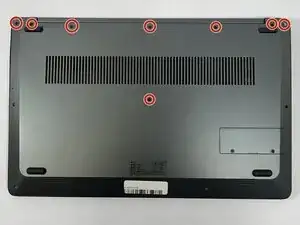

Remove the eight top and middle 7.3 mm screws using the Phillips #0 screwdriver.
-

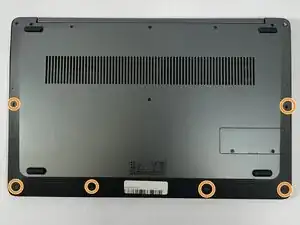

Remove the six bottom and side 4.4 mm screws using the Phillips #0 screwdriver.
-
-
-

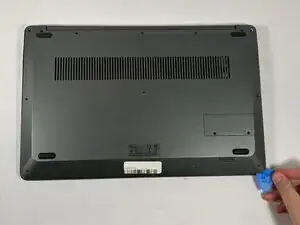

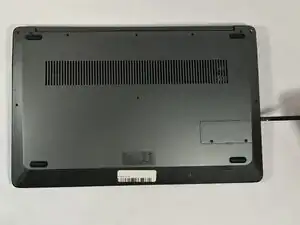

Use the nylon spudger to gently pry a bit of the back panel open. With the opening pick, go all the way around until the back panel is loose.
-
Pull the back panel off the laptop.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
