Polaroid Now+ (Gen 3) Battery Replacement

Written By: Spencer Day

Comments: 0

Polaroid Now+ (Gen 3) Battery Replacement

Difficulty

Moderate

Steps

Time Required

20 - 30 minutes

Introduction

Use this guide to replace a worn‑out or dead battery in your Polaroid Now+ (Gen 3) instant camera.

The lithium‑ion battery in your Polaroid Now+ (Gen 3) camera has a limited lifespan. If your camera dies quickly and doesn't hold a charge, it may be time to replace the battery.

Tools

Parts

Polaroid Now/Now+ Gen 3 Battery - Genuine

Step 1

If you have any film left, take some photos! Then remove the cartridge. Disassembly will expose any leftover film.
Before you begin:
Unplug and fully power down your camera.
Put on the lens cap to avoid scratching your lens during disassembly.

Step 2

Throughout this guide, directional words (front, back, left, right) are from the perspective of using the camera—or when the lens faces away from you.
Hold down the latch on the left side of the camera and open the film door.

Step 3

Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from.
Use a Phillips screwdriver to remove the 5.9 mm‑long screw securing the rear shell.
The screw is hidden inside the camera on the back edge—you may need to use a flashlight to see it, as well as a skinny, long‑shank screwdriver to reach it.
Be careful when removing your screwdriver, as the screw can easily fall inside the camera. If it does, hold the camera above your work surface and gently shake it so the screw falls out.

Step 4

Insert the flat edge of an opening pick in the seam between the front and rear shells, just above the USB‑C port on the right edge.
Use your pick to pry the rear shell away from the front shell.
Keep the inserted edge of the pick pointed toward the rear shell when separating it. This helps release the tight plastic clips holding them together.

Step 5

You should feel and hear distinct "clicks" as the clips release. If you don't, try again—it may take multiple attempts.
Slide your pick around the top right corner and along the top edge to release the clips.

Step 6

Continue sliding your pick along the top edge, around the top left corner, and down the left edge to release the clips. Stop when you get to the film door latch.

Step 7

Gently flip the camera over, making sure none of the clips re‑engage.

Step 8

Remember to keep the inserted edge of the pick pointed towards the rear shell.
Insert your opening pick in the seam near the USB‑C port and slide it around the corner and along the bottom edge to release the remaining clips.

Step 9

Removing the rear shell in the next step exposes the camera mirror. Be careful not to smudge it or get any debris on it. If you accidentally do, use a lint‑free cloth to gently wipe the mirror clean.

Step 10

Gently pull the rear shell off the main body of the camera.
The shell should slide off easily. If it doesn't, check to see if any clips re‑engaged and use your opening pick to release them.
During reassembly:
Press the shell firmly onto the main body so all the clips engage.
You should feel and hear distinct "clicks" as the clips engage.
Check around the shell seam and make sure there are no gaps. If there are, firmly press the shells together to engage the clip near the gap.

Step 11

The capacitor in your camera holds an electrical charge and can deliver a potentially dangerous electric shock if you touch the boards incorrectly.
To minimize risk, avoid touching the boards, wires, and other exposed components with your fingers or metal tools. Consider wearing rubber gloves if working near the board.

Step 12

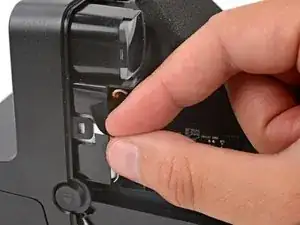

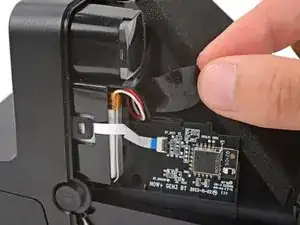

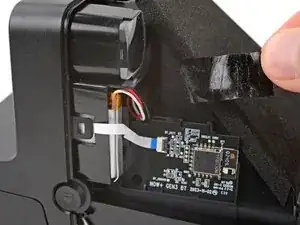

Use your fingers to remove the piece of tape securing the battery and its cables (just below the viewfinder).
Put the piece of tape aside—you'll use it during reassembly.

Step 13

Disconnecting the sub‑board cable makes battery removal easier and prevents accidentally damaging the cable or its delicate connector.

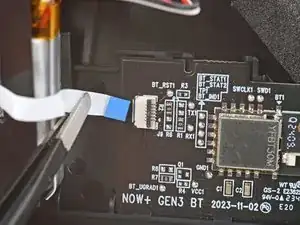

Use a spudger to flip up the hinged locking flap on the sub board ZIF connector.

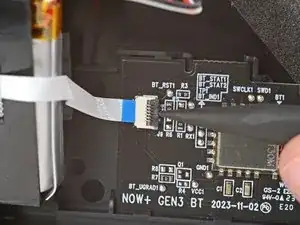

Use a pair of tweezers or your fingers to gently pull the cable straight out of its socket.

Step 14

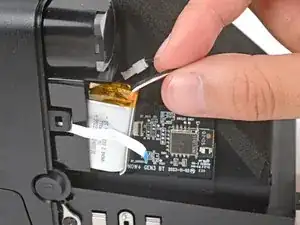

Gently slide the battery out of its plastic housing.
Don't try to fully remove the battery yet, as it's still connected by a delicate cable.

Step 15

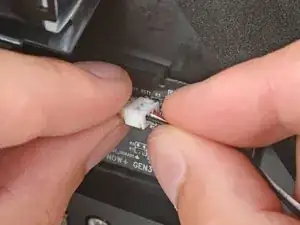

Firmly grip the larger end of the plastic battery connector with one hand and the battery's cable in the other—grip the battery cable as close to the connector as possible.

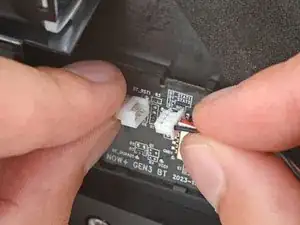

Pull the battery cable straight away from the connector to disconnect it.
Be very careful not to strain the cables.

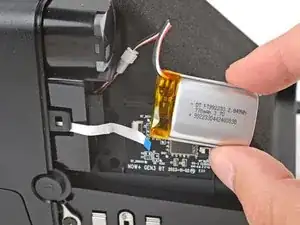

Remove the battery.
