Introduction
Use this guide to replace, change, or upgrade the flash unit shell (aka flash shell, flash cover, front cover, or flip cover) on your Polaroid Flip instant camera.
You may want to change the flash unit shell if it's cracked or damaged, or if you want to customize your camera with different colors.
-
-
If you have any film left, take some photos! Then remove the cartridge. Disassembly will expose any leftover film.
-
Unplug all cables from your camera.
-
-
-

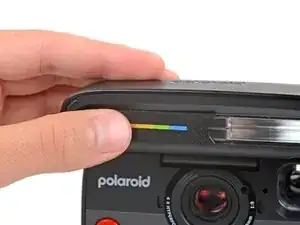

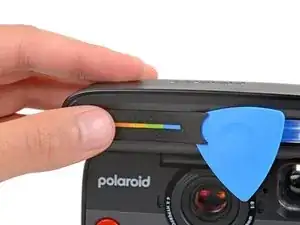

Slide the tip of an opening pick under the right edge of the screw cover, near the flash.
-
Leave the pick inserted under the cover for the next step.
-
-
-
Hold the flash unit open with one hand.
-
With your free hand, use a Phillips screwdriver to remove the three 5.9 mm‑long screws securing the flash unit shell.
-
-
-
Fully close the flash unit for a better grip on the shell.
-
Secure the camera with one hand, and firmly grip the flash unit shell with the other.
-
Lift the right edge of the shell (the side closest to the charging port) to release the clips securing it.
-
Pull the shell up and away from the camera to remove it.
-
To reassemble your device, follow these instructions in reverse order.
Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
