Pentax Optio S4i Battery Replacement

Written By: Nicole Wong
  • Comments: 1
Pentax Optio S4i Battery Replacement

Difficulty

Very easy

Steps

3

Time Required

30 seconds

Introduction

This guide will teach you how to properly remove and insert the camera's battery.

  1. MX3wP2YE55f4iO2V

    • Flip camera over to bottom side. Slide battery cover to the right and flip open.

  2. WAeBpGq3JN5Q1bJx

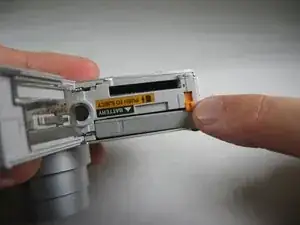

    • Push small, orange lever up to release battery.

  3. Z4AlrZqAkShGuYJ4
    Z4AlrZqAkShGuYJ4
    aLpSEEH4W55mQiY4

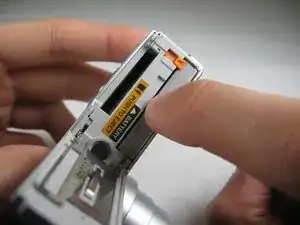

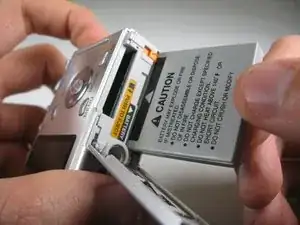

    • To reinsert battery, if necessary repeat Step 1. Insert battery so that the side of the battery with "CAUTION" below the black bar with an arrow faces the label "BATTERY". Make sure to push battery until small, orange lever holds battery in place. Close battery cover.
