Ninja Creami Rotating Shaft Replacement

Written By: Karlee B
  • Comments: 2
Ninja Creami Rotating Shaft Replacement

Difficulty

Moderate

Steps

7

Time Required

20 - 45 minutes

Introduction

The magnetic rotating shaft powers the spinning mechanism inside the Ninja Creami. If the machine isn’t spinning correctly or is making unusual noises, the shaft may need to be removed. Be careful when handling internal parts to avoid damaging gears or misaligning components. Always unplug the device before starting.

  1. uiuIYMTsJrvei4It
    uiuIYMTsJrvei4It
    vINyeVfTUSAaRomf

    • Use an opening tool to gently lift and remove the grey cover from the top of the main piece.

    • Start at one edge and work your way around to avoid cracking the housing.

  2. lIYmgtUdG1a2AYqK
    lIYmgtUdG1a2AYqK
    AWKKRZjdSNaaxHKd
    DV16iOumbURDw1p1

    • Remove the ten 13.6 mm Phillips screws from the perimeter of the outer cover.

    • Lift the black plastic cover straight up and off.

  3. eDrro4ikVBB1lTt3
    eDrro4ikVBB1lTt3
    Dj3jIBCPhlSOxZHS

    • Remove the four 12.2 mm Phillips screws from the black plastic cover.

    • Lift the black plastic cover straight up and off.

  4. HTEeBWii4SKBcriP
    HTEeBWii4SKBcriP
    Eh5IqqsmtmSYHHQw

    • Disconnect the daughterboard's motherboard connector.

    • Remove the daughter board.

  5. Nt61DKs2eY1BVogD
    Nt61DKs2eY1BVogD
    XQ1SS56EHHrlpkIp

    • Disconnect the black connector from motherboard.

  6. T1wJPWogtoWMJQvN
    T1wJPWogtoWMJQvN
    EwCKGmIWxeNDtsFE
    ASS6s4isDGnykb2r

    • Remove the top of the gear housing while holding the bottom in place.

  7. rMHXWaUJOhIbKbIR
    rMHXWaUJOhIbKbIR
    kDF2xljjGJpZgs4d
    hA1GAh5rHuUYb2Mt

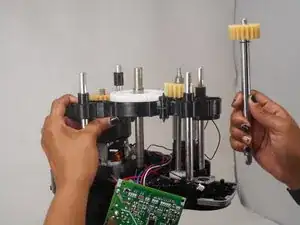

    • Hold the bottom of the gear housing above the shafts that it is on and pull out the rotating shaft.

Conclusion

To reassemble your device, follow these instructions in reverse order.
