Nerf N-Strike Mega Cycloneshock Plunger Spring Replacement

Written By: Thomas Wong
  • Comments: 0
Nerf N-Strike Mega Cycloneshock Plunger Spring Replacement

Difficulty

Moderate

Steps

7

Time Required

10 - 20 minutes

Introduction

The Nerf N-Strike Mega Cycloneshock is among the most famous Nerfs on the market. Over time, the plunger spring may weaken, reducing the blaster's performance. Replacing the plunger spring can restore or even enhance the firing power. This guide will walk you through the step-by-step process of replacing the plunger spring.

  1. FtuS3yQNAnWdO6FU
    FtuS3yQNAnWdO6FU
    SIA3CadeimDPlvIb

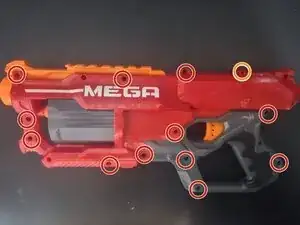

    • Remove all 12 screws with Phillips #1 screwdriver. Keep them in a small container to prevent loss.

    • It is recommended to use a Phillips #0 screwdriver to remove this screw. A Phillips #1 screwdriver can be used, but it may damage the screw, and a new screw will be required.

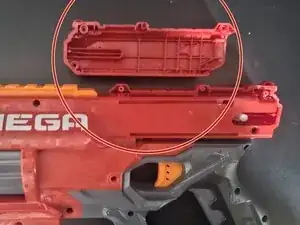

    • Carefully pry the primer off.

    • The nerf Cycloneshock uses 8 10mm, 3 12mm, and 1 8mm screw

  2. OHh1osnHq25BXaBa

    • Gently pry open the shell. If it does not come off easily, double check that all screws are fully removed.

  3. gLxVHo1wEW6pXMXC
    gLxVHo1wEW6pXMXC
    kbWKmOKg6CgWuKxV
    KYAkMDRwe5nOHNbB

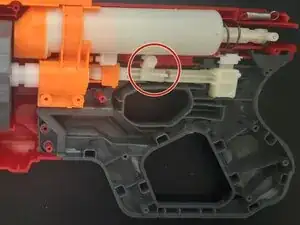

    • Locate the trigger and hook, then carefully remove them.

    • For this step you don't need screwdriver.

  4. UQVoGo1mKtvCITM5
    UQVoGo1mKtvCITM5
    vFYPysMjcrvMYXID

    • Gently lift the plunger mechanism towards yourself, then carefully remove the plunger.

  5. AbFCcxHjlaSlsKBY
    AbFCcxHjlaSlsKBY
    nog3WC46T2W2dYEp
    Q6EEjywvxF6XAAbf

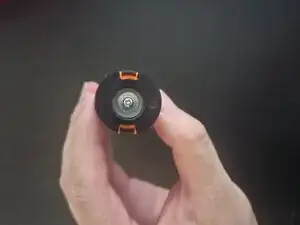

    • Find the screw on the plunger.

    • Use a Phillips #1 Screwdriver to unscrew it.

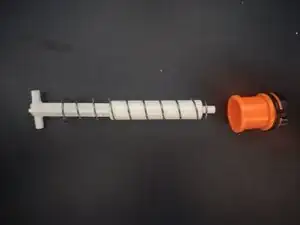

    • Slide the old plunger spring off the plunger rod. If the spring is stuck, gently wiggle it free, and make sure you do not damage surrounding components.

  6. GfTO5TMwQlyuD6VU
    GfTO5TMwQlyuD6VU
    naWxPOnQuXmHTPGe
    OdHLYJQeDitAyJs4

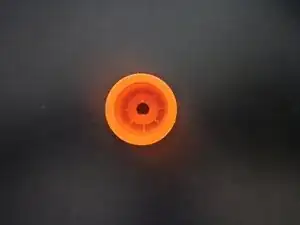

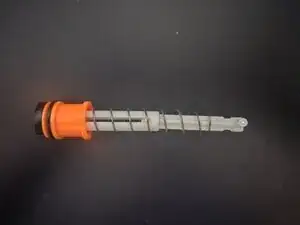

    • Slide the new spring onto the plunger rod.

    • Put top back on aligning groves with plunger.

    • Compress the spring makes it easier.

  7. VvJYU1VlFIMw4Pvp
    VvJYU1VlFIMw4Pvp
    2IYXB21swSeT1LVY
    v12UQiUKTapU6Q36

    • Place the plunger assembly back in its correct position.

    • Place back of plunger in grove.

    • Align all internal components properly before closing the shell.

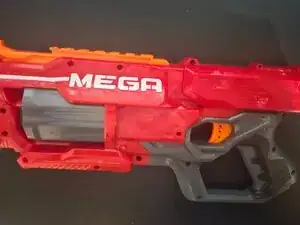

    • Use a Phillips screwdriver to reinstall all screws.

    • Load a Nerf and test fire to check functionality.

Conclusion

By following this guide, you have successfully replaced the plunger spring in your Nerf N-Strike Mega Cycloneshock. This simple upgrade can restore and ensure stronger and more consistent shots, and if you experience any issues, double check the alignment of internal components.
