Motorola i90c Internal Backplate Replacement

Written By: Grant Glazebrook
  • Comments: 0
Motorola i90c Internal Backplate Replacement

Difficulty

Moderate

Steps

6

Time Required

25 - 45 minutes

Introduction

This guide details how to remove the internal backplate of your Motorola i90c phone to expose the speaker, the headphone jack, and the motherboard. Learning to do so may help with replacement, damages, or curiosity.

  1. B3sbjw4XfDPB3fU4
    B3sbjw4XfDPB3fU4
    soyvh4SFRYTJJmbX
    kQokZdYQqTCIV3sO

    • Slide the notch downward while pulling the back cover off to remove it.

  2. FYQZGnC5CVIoEHJY
    FYQZGnC5CVIoEHJY
    5tOoqOlfKhhmNMCJ
    axvZcFdMFsZUOPlQ

    • Use your fingers to push the battery upward from the bottom.

    • Lift upwards to remove the battery.

  3. hwGeEUCq1SWp1PFO
    hwGeEUCq1SWp1PFO
    AMsWkdq2vRbA1xhc

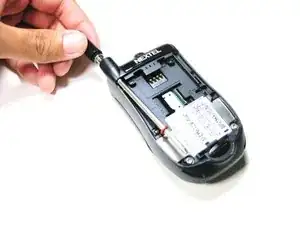

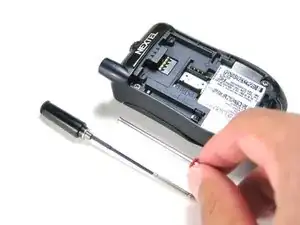

    • Unscrew the antenna in a counter-clockwise fashion.

    • Remove the aluminum cover.

  4. xmdGvJIgVFcl1lHQ
    xmdGvJIgVFcl1lHQ
    wVT6HHywnIt1QdhM
    eXmIjxYrHeUWNrHH

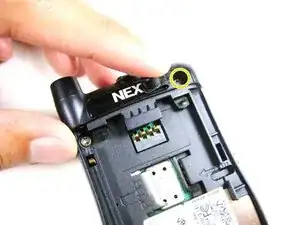

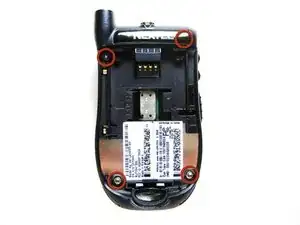

    • Unscrew the 3 screws shown.

    • Lift the right part of the Nextel logo

    • Remove the screw underneath.

  5. 6Vs6TlIDFHlG3mA4
    6Vs6TlIDFHlG3mA4
    CkbgjRhIABOuONSR

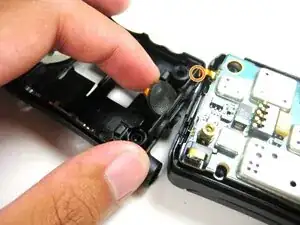

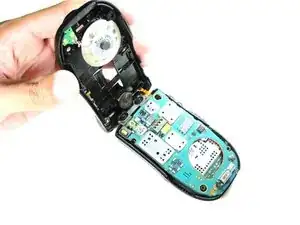

    • Forcing the cover off could damage the ribbon cable, so be careful when doing so.

    • Gently lift the back cover off.

  6. blfeRuswFEGVsVQN
    blfeRuswFEGVsVQN
    3gdk3mlOdkvJbx4Y
    p1rJLQsNwZndaV5g

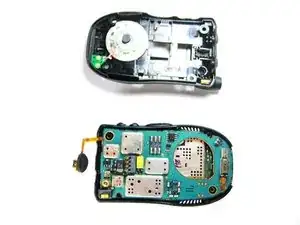

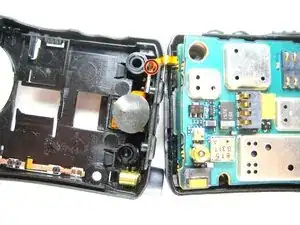

    • Find the connection between the headphone jack and logic board.

    • Begin separating the two pieces, slowly and carefully.

Conclusion

To reassemble your device, follow these instructions in reverse order.
