MSI GS63VR 6RF Stealth Pro WiFi Card Replacement

Written By: Nabil Ranjbar
  • Comments: 3
MSI GS63VR 6RF Stealth Pro WiFi Card Replacement

Difficulty

Easy

Steps

2

Time Required

15 minutes

Introduction

If you're having connectivity issues with your Stealth Pro, or simply want to upgrade your connectivity, this guide will walk you through the replacement process.

  1. tpb1dbTaNf2oHL2H
    tpb1dbTaNf2oHL2H
    6KIf2gxSScwtyELu
    vN5KKyEJoSxvmXXO

    • First, turn off the laptop and make sure it is unplugged from power to avoid injury.

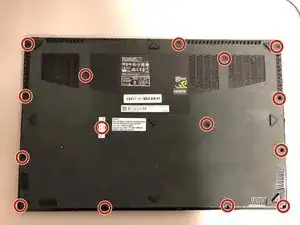

    • Unscrew the 15 screws on the bottom panel of the computer using a Phillips #00 screwdriver. One screw will be hidden under a warranty sticker

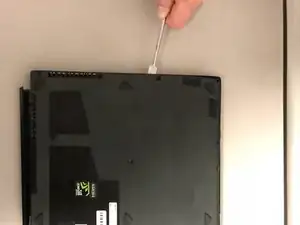

    • Gently pry around the back cover off the with a plastic spudger

    • Unplug the battery cable from the motherboard.

    • Too much pressure from the spudger can break the clips that secure the back panel, but some flex is not dangerous.

  2. 3CHI5C41oshgin4E
    3CHI5C41oshgin4E
    tLEWxP32PpPmtZQu

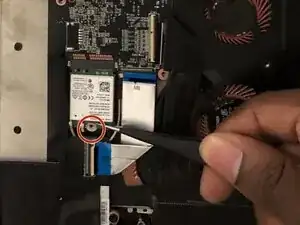

    • Unscrew the single screw from the Wi-Fi card using a Phillips #00 screwdriver.

    • Gently pry up from under the screw hole to release the connections

    • Using plastic tweezers, carefully grab and pull out the Wi-Fi card

    • The Wi-Fi cables can be easily damaged when removing or replacing the connectors. Please take extra care when performing these tasks
