Lorex LHV210800 Button Panel Replacement

Written By: Maxwell Cash
  • Comments: 3
Lorex LHV210800 Button Panel Replacement

Difficulty

Moderate

Steps

9

Time Required

15 minutes

Introduction

The button panel is what transfers button inputs to the motherboard and controls the system directly without use of a controller. These buttons may be stuck and worn after lots of use, so the removal of the board may be necessary. The board may also need replacing due to damage.

  1. YpmYi5OTpB2YWwyJ
    YpmYi5OTpB2YWwyJ
    S6FftXinnNIBbAjl
    FpoMRYUw1qYtMErK

    • Before beginning, disconnect the DVR from power and unplug all peripheries.

    • Remove each of the two 1 cm screws on the right and left sides of the DVR with a Phillips screwdriver.

    The Guide took us 4 minutes to complete

    Anthony -

  2. LrMqHIoas2V1Y2SX
    LrMqHIoas2V1Y2SX
    LjYRHauVrwfgQpTp

    • Remove the four 1 cm Phillips screws on the rear panel.

    • Do not unscrew the screw connected to the lower case

  3. uKXDhs2q14SDJpqD

    • Lift up and remove the top cover.

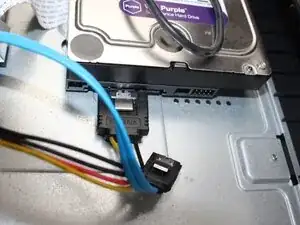

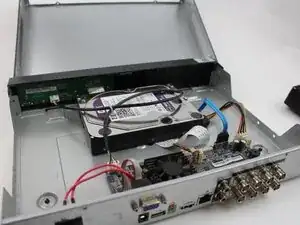

  4. XYXIWVOPWJqD6uYn
    XYXIWVOPWJqD6uYn
    A6CTEqjnjZMIXMbr

    • Unplug the two cables from the HDD.

    • These plugs will have a BLUE and R/B/B/Y color scheme.

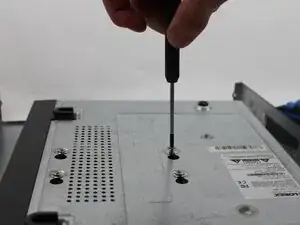

  5. XM66hIMvrikMQ3rO

    • Flip the DVR over so the underside is facing up.

    • Remove the 1 cm Phillips screws on the lower case.

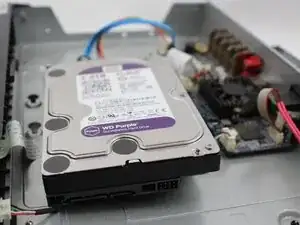

  6. VjZgHtX1K4oOOZ6s

    • Lift the HDD up and out of the chassis.

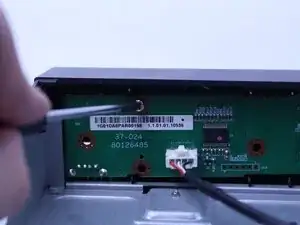

  7. IAEsjO1YEl6EPRBT

    • Remove the five Phillips screws that secure the button panel.

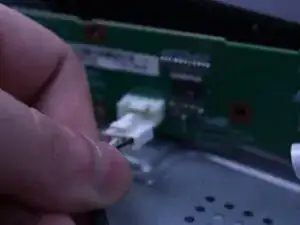

  8. 2YlNSKqUIteNATw5

    • Depress the white clip that secures the button panel connector.

    • Disconnect the white button panel connector.

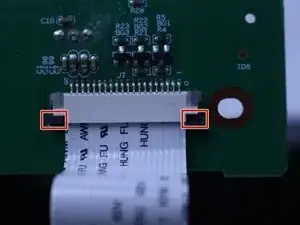

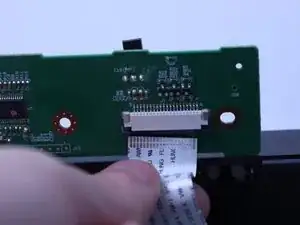

  9. vCTYljK5JYAQRKO1
    vCTYljK5JYAQRKO1
    QaKjbZxPBTeFGi4M

    • Release the retaining tabs that secure the button panel ribbon cable.

    • Disconnect the ribbon cable.

    • Remove the button panel.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
