Lenovo V14-ADA Fan Replacement

Written By: Ryder White
  • Comments: 0
Lenovo V14-ADA Fan Replacement

Difficulty

Moderate

Steps

5

Time Required

10 - 15 minutes

Introduction

This guide will teach you how to replace the fan in the Lenovo V14-ADA.

Failure of the fan in the system will cause the CPU to overheat quickly. This will cause the computer to shut down or display a blue screen.

STOP CODE: CRITICAL_PROCESS_DED

This a good indicator that your CPU has overheated, which is often due to the fan failing. A failing fan could be due to a faulty part or to a fan that needs cleaning.

  1. gnMXkMxnoDbh5K6j

    • Turn off the laptop.

    • Disconnect the charging cable from the laptop.

    • Failure to unplug the cable could result in electric shock.

    • Flip the laptop upside down.

  2. gRsVlGh2GVsj1mnM

    • Remove all ten 5 mm screws from the back panel using a JIS #0 screwdriver.

  3. bFo3uepeHSNTmK2k
    bFo3uepeHSNTmK2k
    btZpShcyxxLC4Yy5

    • Place the Jimmy in the small crack between the back panel and the keyboard and push down.

    • Repeat this until the panel pops off.

  4. SZdmCMbivcy5hrlW
    SZdmCMbivcy5hrlW
    IcY5WdZDhKtIWHlZ

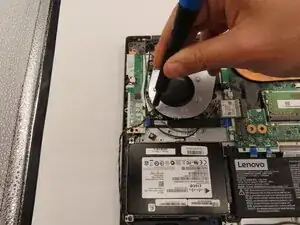

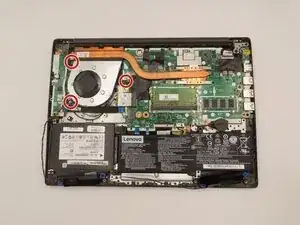

    • Use a JIS #0 screwdriver to remove the three 6 mm screws holding the fan in place.

  5. wY1CD6YhubNjQLEA

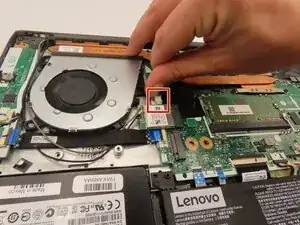

    • Disconnect the white plug by pulling outwards.

    • Remove the fan from the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
