Introduction
This guide shows the steps to replace the touchpad on the Lenovo ThinkPad 570. If you have been experiencing issues with your touchpad, then this is the guide for you!
-
-
Switch the left latch to the left to unlock the battery.
-
While holding the right latch to the right, slide the battery away from the device.
-
-
-
Loosen the captive screws on the back cover of the laptop using a Phillips #0 screwdriver.
-
Use a prying tool to remove the back casing of the computer.
-
-
-
Remove the two 3 mm screws that are holding the internal battery in place.
-
Remove the battery.
-
-
-

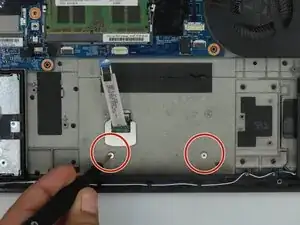

Remove the two 3 mm screws that are holding the touchpad in place using a Phillips #0 screwdriver.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
