Lenovo IdeaPad Slim 3 Chromebook 14M868 Wi-Fi Card Replacement

Written By: Anthoneil Williams
  • Comments: 0
Lenovo IdeaPad Slim 3 Chromebook 14M868 Wi-Fi Card Replacement

Difficulty

Moderate

Steps

8

Time Required

15 - 25 minutes

Introduction

If you need to replace the Wi-Fi card for your Lenovo IdeaPad Slim 3 Chromebook 14M868, follow this guide.

  1. lQmvmnNLQkQac1dW

    • Place the device on a clean dry workspace with the back Cover facing up.

    • Remove 10 Phillip screws.

    • Be careful not to strip screws.

  2. UDWPhukUPFlpvvB6

    • Place space tabs around the edges of the back cover to separate from the device.

  3. AUJSZDa1UOQkVOY4

    • Firmly but carefully pry the back cover off.

  4. TFiKyJdMEC6uQnJY

    • Locate connector.

    • Pick up on locking tab.

    • Pull male connector, gently but firm, away from the female connector.

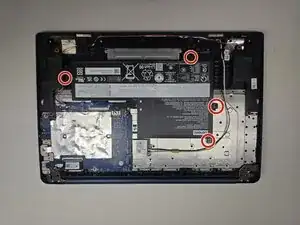

  5. LFSbJtZrApURDAk2

    • Battery is located directly below the back cover.

    • Remove 4 Phillips screws.

    • Carefully store screws.

  6. uy6eYPTDEeHI3oJQ

    • Remove Battery.

    • Replace the battery and dispose of the old battery in a safe manner.

  7. rkYxrBdOhNEqe2By
    rkYxrBdOhNEqe2By
    1wF4KN6k1U6rtPq1

    • Remove 1 Phillip screws.

    • Disconnect the coaxial cables from the Wi-Fi card.

  8. Y165bBaHxmUaRCNY

    • Gently remove Wi-Fi Card by pulling away from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order. Take your e-waste to an R2 or e-Stewards certified recycler.
