Lenovo IdeaPad Slim 3 Chromebook 14M868 Motherboard Replacement

Written By: Anthoneil Williams
  • Comments: 0
Lenovo IdeaPad Slim 3 Chromebook 14M868 Motherboard Replacement

Difficulty

Moderate

Steps

8

Time Required

20 - 40 minutes

Introduction

If you need to replace the motherboard in your Lenovo IdeaPad Slim 3 Chromebook 14M868, follow this guide.

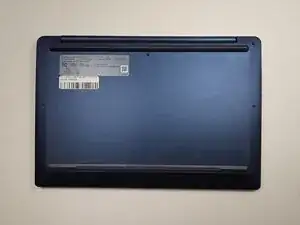

  1. lQmvmnNLQkQac1dW

    • Place the device on a clean dry workspace with the back Cover facing up.

    • Remove 10 Phillip screws.

    • Be careful not to strip screws.

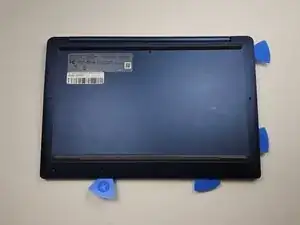

  2. UDWPhukUPFlpvvB6

    • Place space tabs around the edges of the back cover to separate from the device.

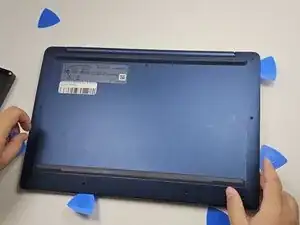

  3. AUJSZDa1UOQkVOY4

    • Firmly but carefully pry the back cover off.

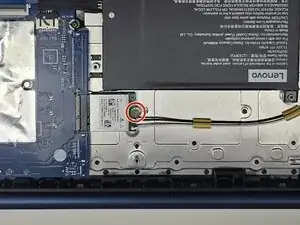

  4. rkYxrBdOhNEqe2By
    rkYxrBdOhNEqe2By
    1wF4KN6k1U6rtPq1

    • Remove 1 Phillip screws.

    • Disconnect the coaxial cables from the Wi-Fi card.

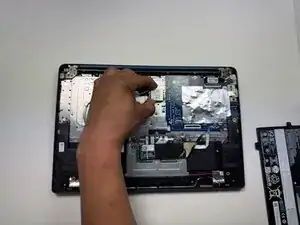

  5. Y165bBaHxmUaRCNY

    • Gently remove Wi-Fi Card by pulling away from the motherboard.

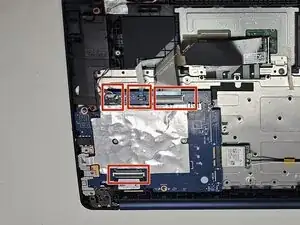

  6. FAH2kjRcB1ocmCQI

    • Disconnect the four connectors from the motherboard.

    • For detailed instructions on how to recognize and disconnect connectors, take a look at this guide.

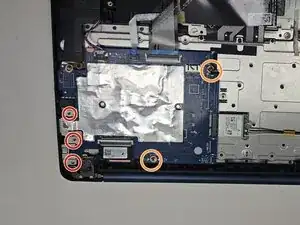

  7. lExeEHfVixgXveJW

    • Remove three Phillips screws from the I/O bracket.

    • Remove the I/O bracket.

    • Remove two screws from the motherboard.

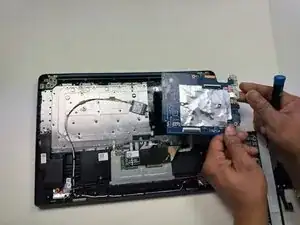

  8. eHo3pstZkBFsJFqS

    • Carefully remove the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order. Take your e-waste to an R2 or e-Stewards certified recycler.
