Introduction

If the Lenovo Flex 3-1580 speakers are not producing any audio or sound distorted, this guide will walk you through how to replace them. Replacing any faulty speakers will help produce clear sound. Before resulting in a replacement, it can be beneficial to check this troubleshooting guide first.

Warning: Power down your device completely by holding the power button for 5-10 seconds, unplug the charger if still plugged in, then ground yourself by using an anti-static wrist strap connected to a grounded surface before handling any sensitive components. For a further explanation how to use the iFixit anti-static wristband please refer to this guide.

No recall notices have been issued by Lenovo for the Flex 3-1580 series speakers.

  1. tAdXUIWJ2rUW3cLB

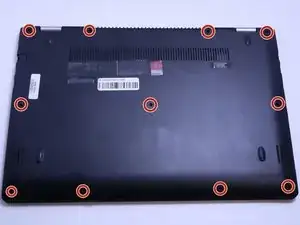

    • Remove eleven 6.0 mm screws from the bottom cover using a JIS #1 screwdriver.

  2. rtfu2nRXtAIatPyu
    rtfu2nRXtAIatPyu
    OCXDlAmlHPQKDUVB

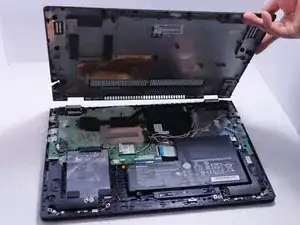

    • Loosen the backing cover by sliding a spudger along the edges.

    • You’ll hear and feel a pop as you loosen the edges. This lets you know the backing is loosening up.

    • Remove the bottom cover from the laptop.

  3. DH4Yxdj23VNfcZiP
    DH4Yxdj23VNfcZiP
    XeSAjBeCTSj4Xc1F
    • Pull up the speakers from their compartments on the right and left sides.

  4. lFUoeYydnWkWZ1Yy
    • Gently pull and wiggle out the plug from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
