Introduction
Before completing this replacement guide, it is important to unplug the device. This replacement guide will show how to replace the speaker in the device.
-
-

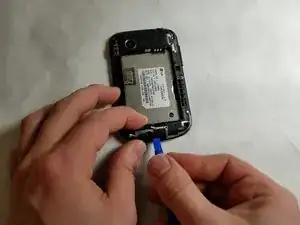

Pry open the back case on the device with a plastic opening tool going around the edges of the device to ensure it is taken off with no damage then finally remove it and place it on the side.
-
-
-

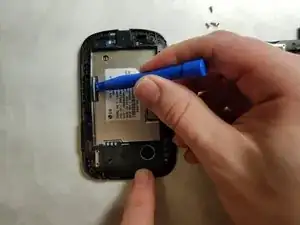

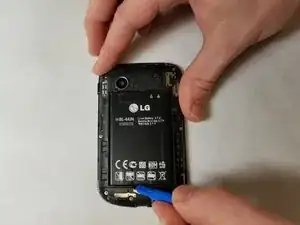

Pry the battery out of the device with a plastic opening tool opposite from the plastic pieces keeping it in place and remove it gently in order to ensure that you don’t damage it.
-
-
-
Remove the three 4 mm screws using a JIS screwdriver with a J000 head from the bottom part of the internal casing.
-
-
-

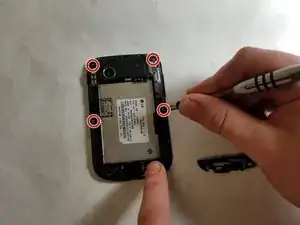

Remove the four 4 mm screws using a JIS screwdriver with a J000 head from the top part of the internal casing.
-
To reassemble your device, follow these instructions in reverse order.
