Kobo Clara BW (P365) Battery Disconnection

Written By: Carsten Frauenheim
  • Comments: 0
Kobo Clara BW (P365) Battery Disconnection

Difficulty

Moderate

Steps

8

Time Required

No estimate

Introduction

  1. QCU1Kr4aURSIRW56
    QCU1Kr4aURSIRW56
    CwU6cApjRL1XcweD
    CM2XMiXawgMjBIyr

    • Drain your eReader's battery as much as possible before starting your repair. Ideally, it should be fully discharged.

    • Optionally, to drain the battery faster, navigate to More → Settings → Energy saving and privacy and set Automatically go to sleep after and Automatically power off after to Never.

    • When working on or near the battery, don't use sharp metal tools to avoid puncturing and shorting the battery.

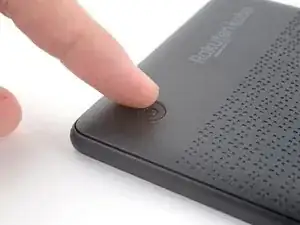

    • Unplug all cables and fully shut down your eReader.

    • Your screen should be black and say Powered off.

  2. awqP2GDCEv2q1Gip
    awqP2GDCEv2q1Gip
    PTsQGRWD4CALYKq6

    • Lay your eReader down so the back cover is facing up.

    • Insert the flat edge of an opening pick between the frame and the bottom left corner of the back cover.

    • Push the pick downwards at a slight angle until it slides under the back cover.

  3. JHSCBsdfXdXyrBlj
    JHSCBsdfXdXyrBlj
    NMWvYdZIyobdYRUu
    Kgrh2Udq6BqY2PMM

    • Slide the pick toward the bottom right corner to release the clips along the bottom edge.

  4. xrRL4gFPnCQVD66u
    xrRL4gFPnCQVD66u
    FPdLgXMeEQ16L4OR

    • Remove the pick and reinsert it under the bottom left corner.

    • Angle the pick flat under the back cover and rotate it around the bottom left corner to release its clips.

    • If you're having trouble, try twisting the pick to lift the corner clips out of their slots.

  5. gZwNcpcZAwbgURWY
    gZwNcpcZAwbgURWY
    QuTZWngGpbicuBsP
    G3GCGn1XgJQMuGXB

    • Slide the pick toward the top left corner to release the clips along the left edge.

  6. XrwhQFfhdAXAZZw5
    XrwhQFfhdAXAZZw5
    hZDct5xsqUpwWyWk
    6C5PIUKvA1UIgxS6

    • At this point, you should be able to grip the back cover and release its remaining clips. If not, slide a pick under the perimeter of the back cover until you can grip an edge.

    • Grip the left edge of the back cover and lift it away from the eReader to release the remaining clips.

    • Remove the back cover.

    • During reassembly, align the back cover over the eReader and press along the perimeter until all its clips snap back into place.

  7. r2jwgcMWWKuoNfXb
    r2jwgcMWWKuoNfXb
    F1Xda3JgVUD6O1PN
    joD2ZNOHHliOik6D

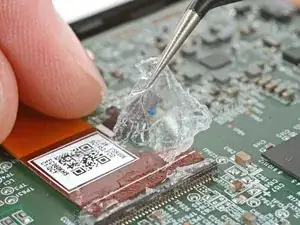

    • Nearly the entire surface of the eReader's internals is covered in a thin, plastic-like waterproof coating. Keep the following in mind as you continue disassembly:

    • While this won't hurt your device, removing the coating compromises the device to potential water damage.

    • The coating is brittle and can flake into many small pieces. Heating the coating helps, but working with it is still a time-consuming process.

    • The ZIF connector locking tabs are coated in a gel that can jam the hinge and keep the locking tab from completely unlocking. Make sure the tabs are completely upright before disconnecting any cables.

    • Depending on your repair, you might have to remove the coating completely from the connectors and their cables.

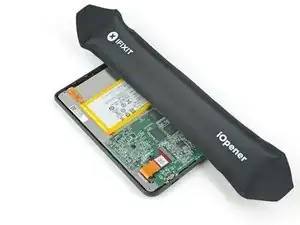

    • If at any point the coating becomes too difficult to work with, heat it for 90 seconds with an iOpener or a hair dryer.

  8. PUcLYrXh15Dg3YpG
    PUcLYrXh15Dg3YpG
    OJSFA4KKElYrjclF

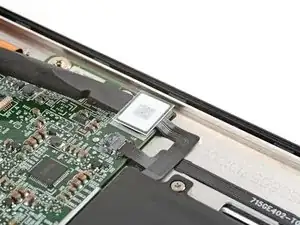

    • Use a clean fingernail or the flat end of a spudger to pry up and disconnect the battery press connector.

    • Don't pull on what looks like a clear connector pull tab. The tab is secured to the socket gasket.

Conclusion

To reassemble your device, follow these instructions in reverse order.
