Introduction
The drill press spindle turns inside the quill using several bearings. After a lot of use, these bearings can wear out and need to be replaced.
This guide will show you how to replace those bearings.
-
-

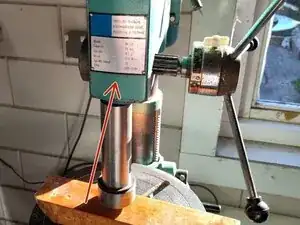

Remove the chuck from the spindle and support the quill to prevent it from dropping uncontrollably when the spring tension is released.
-

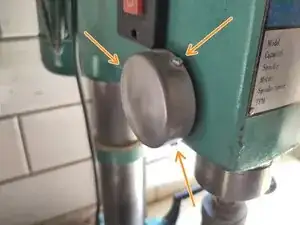

Remove the 3 bolts that hold the spring cover in place and remove the cover.
-

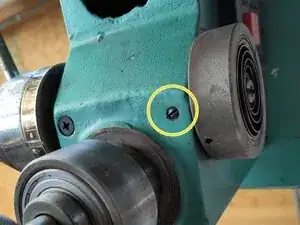

Turn the spring lock screw left to release the spring tension.
-
-
-

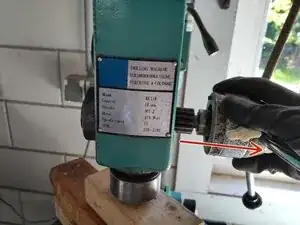

Pull out the feed lever pinion.
-

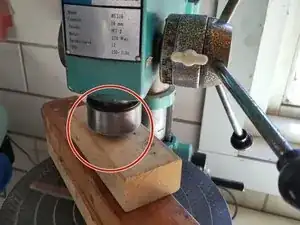

Remove the supports and remove the quill from the drill press frame.
-
-
-

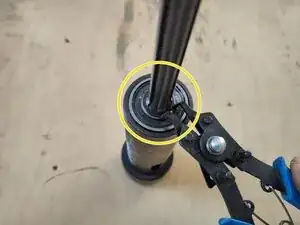

Remove the snap ring holding the top bearing in place.
-

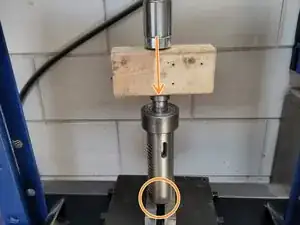

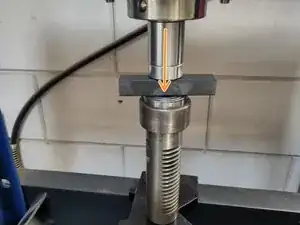

Use the press to press the spindle from the quill.
-
-
-

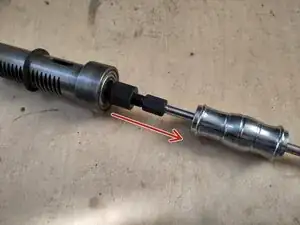

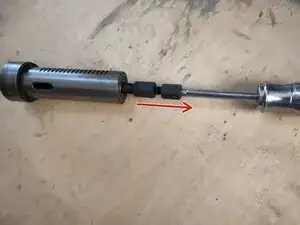

The bearings are press fit into the quill, remove the bearings with the bearing removal tool.
-
The bottom bearings consists of a thrust bearing on top of "regular" deep groove ball bearing.
-
-
-
Clean the quill and insert the thrust bearing.
-
Press in the bottom bearing on top of the thrust bearing.
-

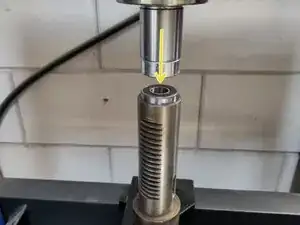

Next, press in the top bearing.
-
-
-
Slide the spindle back into the quill.
-

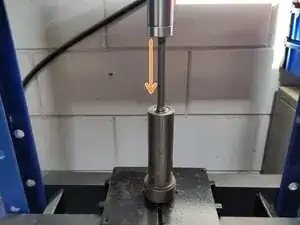

Use the press to press the spindle fully into the quill. Make sure the top bearing is not pressed out again by supporting it from beneath.
-

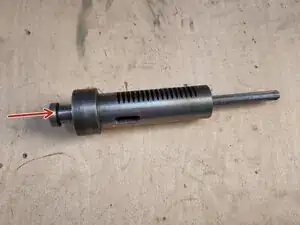

Add the snap ring back on top of the quill.
-
-
-

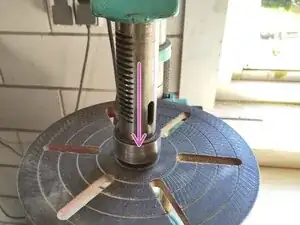

Insert the quill back into the frame.
-
While pushing and holding the quill up, slide the feed lever pinion back in connecting with the quill rack.
-

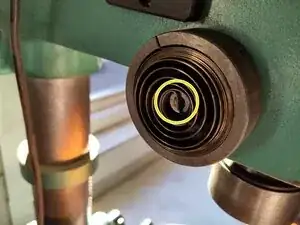

Insert the end of the pinion into the spiral spring.
-
Complete the repair by tensioning the spring. Refer to the separate guide for detailed instructions.
