Joy-Con Motherboard Replacement

Written By: Savalio AnanaNIMus
  • Comments: 6
Joy-Con Motherboard Replacement

Difficulty

Moderate

Steps

4

Time Required

5 - 10 minutes

Introduction

Hi! I'll teach you how to replace Joy-Con's motherboard! You need:

  1. Y00 screwdriver
  2. 00 screwdriver
  3. Joy-Con you going to repair
  4. Replacement motherboard (Must fit with Joy-Con you fix)

  1. 2gf6RZrhH45WbRCG

    • I'm going to use left Joy-Con. The right Joy-Con might look a bit different but the steps should be the same

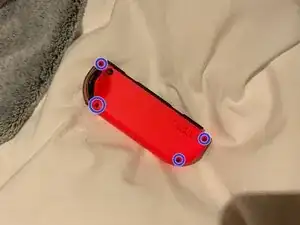

  2. MAiQHacTDXOy2pGs
    MAiQHacTDXOy2pGs

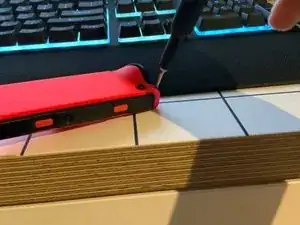

    H3ArHgw5fw26T3Ik

    • Take your Y00 screwdriver and get to work! Unscrew the four screws holding the back of the Joy-Con in place.

  3. 5IMglKmQIqT6eJho

    • Carefully open the Joy-Con backshell, take your time!

    • Proceed with caution. It has ribbon cables attached, BE CAREFUL!

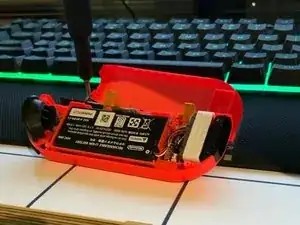

  4. LxJueVIYjc4wZRqP

    • Backshell can get really annoying, so why won't we just unscrew it? Take 00 screwdriver and let's get it done!

    • Note: DO NOT unscrew bolts on an LED strip.

    The guide does not cover replacing the motherboard at all.

    Zipples -

    The article does not cover replacing the motherboard at all.

    Zipples -

Conclusion

To reassemble your device, follow these instructions in reverse order.
