JBL Xtreme 4 Motherboard Replacement

Written By: Thomas Holloway
  • Comments: 0
JBL Xtreme 4 Motherboard Replacement

Difficulty

Difficult

Steps

18

Time Required

25 - 45 minutes

Introduction

The motherboard houses all the essential electronics to allow your JBL Xtreme 4 to play music. It can be found on the right hand side under the passive radiator and powerboard. In certain scenarios your motherboard may need to be replaced. If it comes to it this guide will show you how!

The Bluetooth 5.3 module is also housed on the motherboard. If you are experiencing Bluetooth issues consult our troubleshooting guide to see if replacing your motherboard is necessary.

Be sure to disconnect your device from any power sources before disassembling any electronics.

  1. c3yQNZOjpVT2GRL4
    c3yQNZOjpVT2GRL4
    PXutIxtVmZENj1ge
    jVsYt6Vy2qr33E5u

    • Use a T20 Torx screwdriver to remove the two 12.5 mm screws that secure the battery cover.

  2. 6AY2fGCilZGSP3s1

    • Using your fingernail or a spudger, pry open the battery cover.

  3. edvri4QlRbkQ6RcN

    • Remove the battery by pinching the orange ribbon and gently pulling the battery upwards and out of its slot.

  4. RRUwGO51Uqdk4dnl
    RRUwGO51Uqdk4dnl
    dOgrwTLkPiOXgYPv

    • Insert the flat end of a spudger into the mesh cover seam beside the battery compartment.

    • Pry on both sides of the battery compartment until the mesh cover releases.

  5. cDJ3q6eCCBoxMvl2

    • Use a Phillips screwdriver to remove the two 8.5 mm screws on either side of the battery compartment.

  6. GKcNMbVQbDHTVLqg

    • Lift the speaker out of the cover.

  7. Erq1M2ODni4BT3ox
    Erq1M2ODni4BT3ox
    SGiVxIUOVuWOqTGi
    AHoIpxDXln2SYsTj

    • Use a Phillips screwdriver to remove the three 8.5 mm screws on the tweeter.

    • Pull the tweeter out from the device.

  8. U6AgbL3CVF4DtToW
    U6AgbL3CVF4DtToW
    NrqcSIpHCeDkpGkJ

    • Pinch the cable connection for the tweeters and pull off.

    • Repeat the previous bullet for the second cable.

  9. DC2yffArBIsFqClY
    DC2yffArBIsFqClY
    OZxM1V56GAogJfpH
    gcqVNC2CdWsvKwKD

    • Use a Phillips the four 12.4 mm screws that secure the passive radiator.

  10. 6BIhin5avJb6mbuC

    • Remove the passive radiator from the body of the speaker.

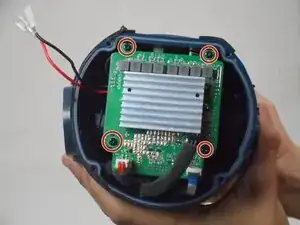

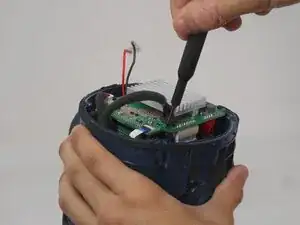

  11. C6QSQxSXQfVUUuUc
    C6QSQxSXQfVUUuUc
    HwbDHdADdCxbMXea

    • Use a screwdriver to remove four 8.5 mm screws that secure the power supply board.

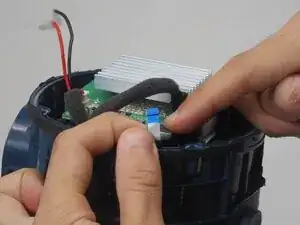

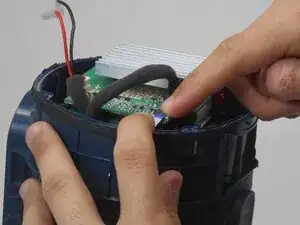

  12. YTghVVsLkQOaKnju
    YTghVVsLkQOaKnju
    cLUHaURSviWYUBhO

    • Lift the black ZIF locking flap that secures the ribbon cable.

    • Pull the ribbon cable directly out of its socket.

  13. CeVuHjOeXPKhVGEW
    CeVuHjOeXPKhVGEW
    IvboHWoBOxWw5mLy

    • Unplug the two cable connectors from the power supply board by pulling them straight up and out of their sockets.

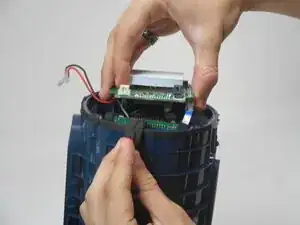

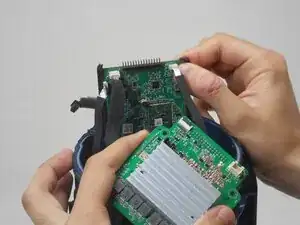

  14. k2U2GwMT1xnVdplc
    k2U2GwMT1xnVdplc
    1OjED4TksbIfuwsw

    • Carefully lift the power supply board and move it to the side to access the motherboard.

  15. YOtkOHfXH32XBAHZ
    YOtkOHfXH32XBAHZ
    Pi5tAgJxLE2JOlhy

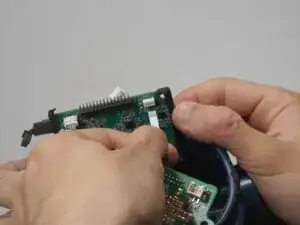

    • Disconnect the two ribbon cables attached to the motherboard.

  16. H6TkOJKvnNtHIb1W

    • Detach the remaining cable connector from the motherboard.

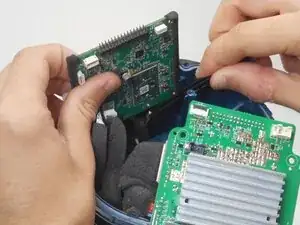

  17. RxTSPUYPnCmJJmTu

    • Use angled tweezers to lift and disconnect the coaxial cable.

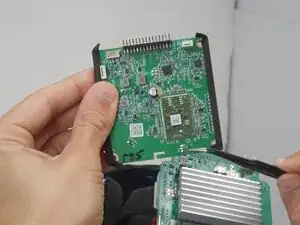

  18. cZb1wMYEc3XQJEqg

    • Lift the motherboard out of the speaker housing to remove it completely.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
